Application Types LC-MS

Part number: 10-6360

Status Discontinued i

Gas types Nitrogen Air

Integrated compressor Yes

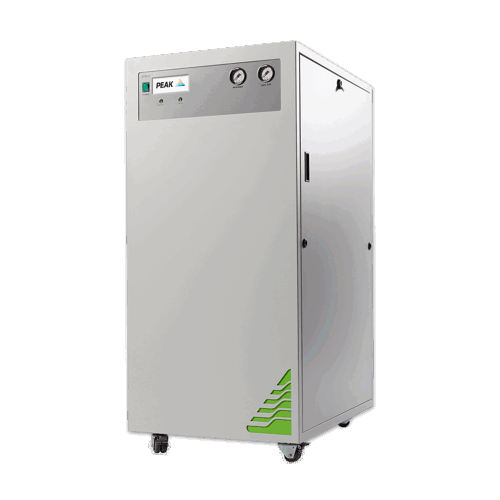

Genius 3051 Nitrogen Generator

Engineered specifically for the Shimadzu LCMS-8045, LCMS-8050, LCMS-8060 and LCMS-9030 instruments, the Genius 3051 provides one output of phthalate free, high purity nitrogen at up to 27 L/min and one of dry air at up to 29 L/min. This will provide enough high purity gas to support these instruments even when being operated in 'high flow gas delivery mode' and for some uses up to two instruments in 'standard gas delivery mode'.

View active replacement

Features

  • Shimadzu tested and approved solution for LCMS-9030
  • Specifically designed for LCMS-8045, LCMS-8050 and LCMS-8060
  • Self-contained solution with integrated compressors, no need for an external air supply
  • Gas is supplied on demand so generator works to your schedule
  • Supports LCMS "High flow gas delivery" mode
  • Highly economical source of nitrogen/dry air with low lifetime running costs
  • Latest generation high performance compressors for longer service interval
  • Service indication to allow planning of preventative maintenance
  • Wheels make it easy to manoeuvre generator around the lab
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Min Gas Flow: 0L/min

Max Gas Flow: 27L/min

Max Output Pressure: 100psi/6.9bar


Gas Type: Air

Min Gas Flow: 0L/min

Max Gas Flow: 29L/min

Max Output Pressure: 100psi/6.9bar

Site & Installation

Start Up Time: 30 mins

Power Consumption: Up to 2760 VA

Voltage: 230 V ± 10%

Frequency: 50 / 60 Hz

Current: 12 A

Max Operating Temp: 35°C / 95°F

Particles: none

Phthalates: none

Contaminants: none

Suspended Liquids: none

Accreditations: CSA, FCC, CE

Dimensions & weight

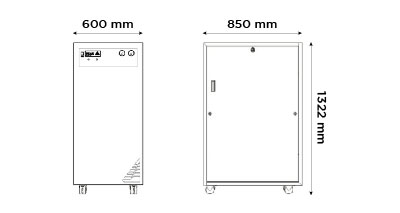

Genius 3051 Dimensions 01

Size (HxWxD) mm: 1322 x 600 x 850 mm

Size (HxWxD) Inches: 52 x 23.6 x 33.5 inches

Generator Weight: 216kg / 475.2lbs
