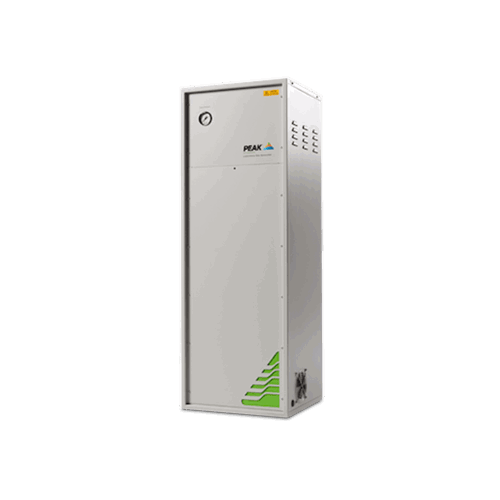

NG5000 ultra high purity nitrogen generators
The NG5000 delivers UHP nitrogen at trace detection limits through Pressure Swing Adsorption technology at flows of up to 5 L/min.
Applications: ICP-MS, CAD & ELSD, GC & GC-MS, CD
Application Types CAD & ELSD, ICP-MS, GC & GC-MS, CD
Part number:
10-1292 (230v) - UK
10-1295 (230v) - EU
10-1291 (110v) - US
Status Available i
Integrated compressor Yes
NG5000A ultra high purity nitrogen generator
The NG5000(A) (CMS) Carbon Molecular Sieve Generator delivers ultra high purity nitrogen at trace detection limits through Pressure Swing Adsorption technology at flows of up to 5 L/min for GC, DSC, DMA and other applications requiring ultra high purity nitrogen at up to 5L/min. The NG5000(A) comes with an internal compressor for laboratories without an external source of gas.
To reach their ultra high purity nitrogen output these generators use Pressure Swing Adsorption and Carbon Molecular Sieve. These separation technologies remove oxygen and other impurities in air, delivering hassle-free, ultra high purity nitrogen, on-demand for the lab.
Read more
Request a quote
Features
- Suitable for applications such as GC, DSC, DMA Suitable for applications requiring ultra high purity
- Available with or without an external compressor
- Contains self-regenerating Carbon Molecular Sieve column
- Gas is supplied on demand so generator works to your schedule
- 12 month comprehensive on-site warranty
Gas
Gas Type: Nitrogen
Min Gas Flow: 0L/min
Max Gas Flow: 5L/min
Max Output Pressure: 80psi/5.5bar
Max Purity: upto 99.9995%
Site & Installation
Min Inlet Pressure: 120psi/8.3bar
Max Inlet Pressure: 130psi/9bar
Start Up Time: 8 hours
Power Consumption: 132 Watts
Voltage: 110 / 230 ± 10% VAC
Frequency: 50 / 60 Hz
Current: 0.5 Amps / 1.2Amps
Max Operating Temp: 25°C / 77°F
Accreditations: CE

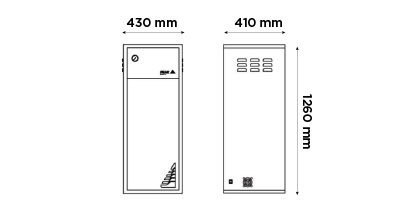

Dimensions & weight
Size (HxWxD) mm: 1235 x 449 x 406.5 mm
Size (HxWxD) Inches: 48.6 x 17.7 x 16 inches
Generator Weight: 88kg / 193.6lbs
