CG15L Zero Air Generator
The CG15L generates zero air by removing carbon dioxide and moisture from the air for applications requiring a higher performance.
Applications: TOC
Application Types TOC
Part number:
42-1040 (230V) - UK
42-1050 (230V) - EU
42-1060 (110V) - US
Status Discontinued i
Integrated compressor No

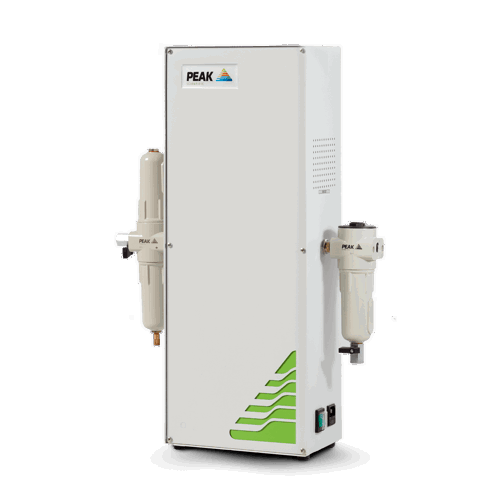

TOC 1500 HP Total Organic Carbon Generator
Peak Scientific’s TOC range of specialist generators have been designed specifically to supply clean, dry, carbon dioxide and methane free air for Total Organic Carbon analyzers.
Delivering carrier or combustion gas from an external air supply, these generators are available in two models, depending on your requirement, the standard model is suitable for non-purgeable organic carbon (NPOC) whilst the HP model is suitable for TC-IC process Total Organic Carbon analyzers.
Read more
View active replacement
Features
- Produces clean, dry, hydrocarbon and carbon dioxide free air
- Ideal for TC-IC process TOC analyzers
- Performs 24/7 if needed
- Few moving parts means little maintenance required and ensures long life of the generator
- Completely silent in operation
- Minimal set-up required
- Can be supported by Precision Air Compressor
- 12 month comprehensive on-site warranty
Gas
Gas Type: Air
Max Gas Flow: 1.5L/min
Max Output Pressure: 80psi/5.5bar
Max Purity: <1ppm CO2/ 0.1ppm THC
Site & Installation
Gas Outlets Fitting: 1x 1/4” BSP Female
Min Inlet Pressure: 100psi/6.9bar
Max Inlet Pressure: 120psi/8.3bar
Power Consumption: 115 W
Voltage: 115 / 230 V ± 10%
Frequency: 50 / 60 Hz
Current: 2.6 / 5.2 A
Max Operating Temp: 25°C / 77°F
Accreditations: CE
Dimensions & weight
Size (HxWxD) mm: 620 x 430 x 410 mm
Size (HxWxD) Inches: 24.4 x 16.9 x 16.1 inches
Generator Weight: 57kg / 125.4lbs
Service Requirements
Annual replacement of particulate filters
