Application Types GC & GC-MS
Part number:
30-1660 (230v) - UK
30-1670 (230v) - EU
30-1680 (110v) - US
Status Retired i
Integrated compressor Yes
![ZA180A NITROGEN GENERATOR](/media/vb5exzec/za180a-nitrogen-generator.png?anchor=center&mode=crop&quality=80&width=500&height=500&rnd=132463746762900000)

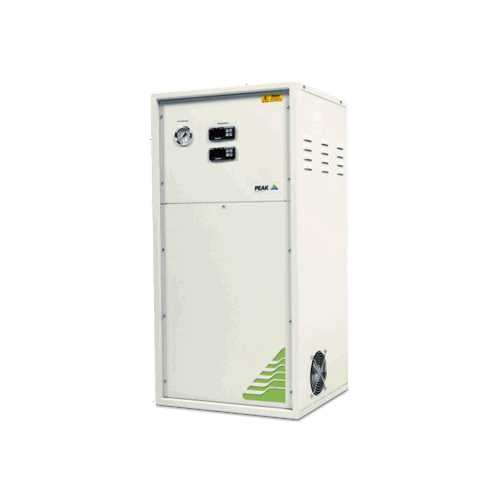

ZA180A
Generating zero air for detector gas in GC applications, the ZA180A generator removes all hydrocarbons from a compressed air source before it enters your instrumentation, ensuring the the tidiest results from your detector.
View active replacementFeatures
- Produces zero air to <0.1ppm of content
- Performs 24/7 if needed
- One generator can supply multiple instruments
- Few moving parts means little maintenance required and ensures long life of the generator
- Minimal set-up required
- 12 month comprehensive on-site warranty
Gas
Gas Type: Air
Max Gas Flow: 18L/min
Hydrocarbon Content: 0.1ppm
Max Purity: 0.1ppm THC
Site & Installation
Start Up Time: 40 Minutes
Power Consumption: 770 Watts
Voltage: 110 / 230 ± 10% VAC
Frequency: 60 Hz
Current: 2/4 Amps
Max Operating Temp: 30°C / 86°F
Accreditations: CE

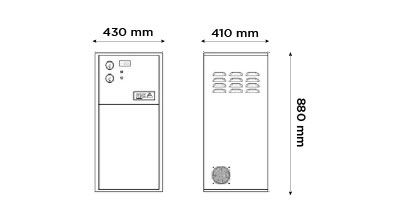

Dimensions & weight
![ZA180A 200 01](/media/a2ahgpfn/za180a-200-01.jpg?anchor=center&mode=crop&rnd=132230535539500000)
Size (HxWxD) mm: 880 x 430 x 410 mm
Size (HxWxD) Inches: 34.6 x 16.9 x 16.1 inches
Generator Weight: 64kg / 140.8lbs
