Genius NM32LA nitrogen generators
With many thousands of units in the field, the NM32LA has become the proven and reliable nitrogen generator of choice in countless laboratories.
Applications: LC-MS

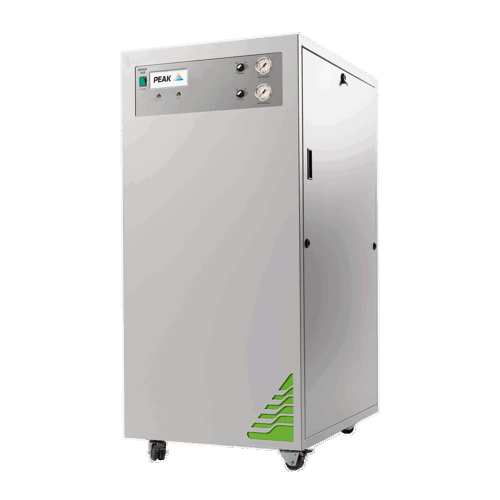

Genius 3020 Nitrogen Generator
Combining the capacity of two separate Genius nitrogen generator systems into one fully integrated system in the same compact footprint, the Genius 3020 is a convenient and safe on-demand gas solution with dual output providing two independently controlled gas sources with the ability to supply two individual LC-MS instruments.
View active replacementFeatures
- Combines two Genius units into one with the same quality output
- Each gas supply is controlled manually and is independent of the other
- Higher flow rate 30 series generator designed for hungrier LC-MS applications
- Compressor based solution, no need for an external air supply
- Minimal set-up required
- Highly economical source of nitrogen gas with low lifetime running costs
- The latest generation of compressors located in an insulated chamber reducing noise and vibration
- Service indication to allow planning of preventative maintenance
- Gas is supplied on demand so generator works to your schedule
- Wheels make it easy to manoeuvre generator around the lab
- 12 month comprehensive on-site warranty
Gas
Gas Type: Nitrogen
Max Gas Flow: 32L/min
Max Output Pressure: 100psi/6.9bar
Gas Type: Nitrogen
Max Gas Flow: 32L/min
Max Output Pressure: 100psi/6.9bar
Site & Installation
Gas Outlets Fitting: 2x 1/4" BSPP
Start Up Time: 30 mins
Power Consumption: up to 2,760 VA
Voltage: 230 ± 10% V
Frequency: 50 / 60 Hz
Current: 12 A
Heat output: 9412 BTU
Max Operating Temp: 35°C / 95°F
Particles: <0.01 μm
Phthalates: none
Suspended Liquids: none
Accreditations: CE, CSA

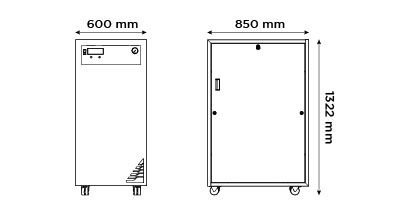

Dimensions & weight
Size (HxWxD) mm: 1322 x 600 x 850 mm
Size (HxWxD) Inches: 52 x 23.6 x 33.5 inches
Generator Weight: 189kg / 415.8lbs
