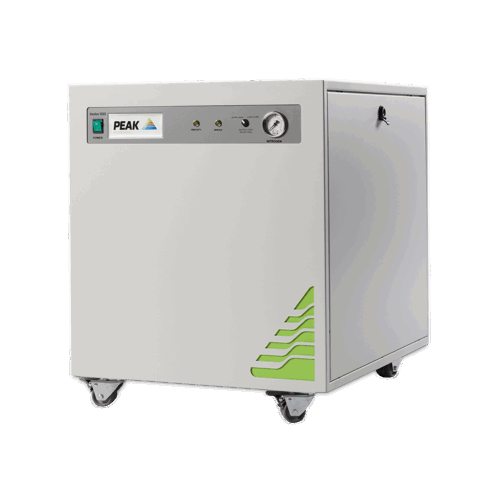

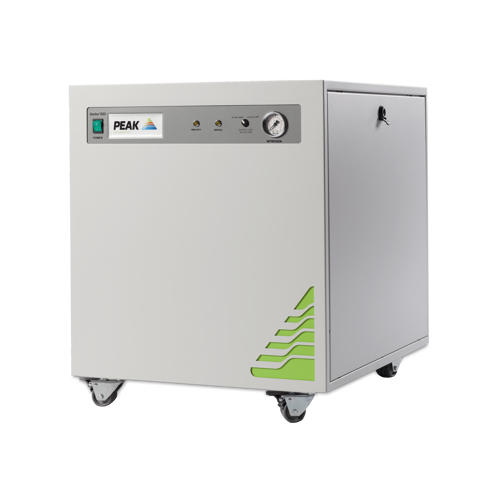

Genius 1023 Nitrogen Generator for Chip Cube
With an optional output of laboratory-grade nitrogen or an oxygen/nitrogen mix, the Genius 1023 is a flexible generator designed to meet the requirements of the Agilent Chip Cube system.
Features
- Delivers either LC-MS grade nitrogen or 10% oxygen-rich nitrogen for Agilent Chip Cube
- Compressor based solution, no need for an external air supply
- Minimal set-up required
- Highly economical source of nitrogen gas with low lifetime running costs
- The latest generation of compressors located in an insulated chamber reducing noise and vibration
- Service indication to allow planning of preventative maintenance
- Gas is supplied on demand so generator works to your schedule
- Wheels make it easy to manoeuvre generator around the lab
- 12 month comprehensive on-site warranty
Gas
Gas Type: Nitrogen
Max Gas Flow: 32L/min
Max Output Pressure: 100psi/6.9bar
Site & Installation
Gas Outlets Fitting: 1x 1/4" BSPP
Start Up Time: 30 mins
Power Consumption: Up to 1610 VA
Voltage: 230 ± 10% V
Frequency: 50 / 60 Hz
Current: 7 A
Heat output: Up to 5729 BTU
Max Operating Temp: 30°C / 86°F
Particles: <0.1μm
Phthalates: none
Suspended Liquids: none
Accreditations: CE, FCC

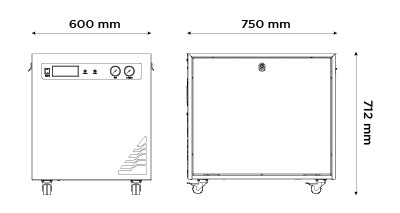

Dimensions & weight
Size (HxWxD) mm: 713 x 600 x 750 mm
Size (HxWxD) Inches: 28.1 x 23.6 x 29.5 inches
Generator Weight: 106kg / 233.2lbs
