Application Types LC-MS

Part number: 10-9524

Status Available i

Gas types Nitrogen Air

Integrated compressor Yes

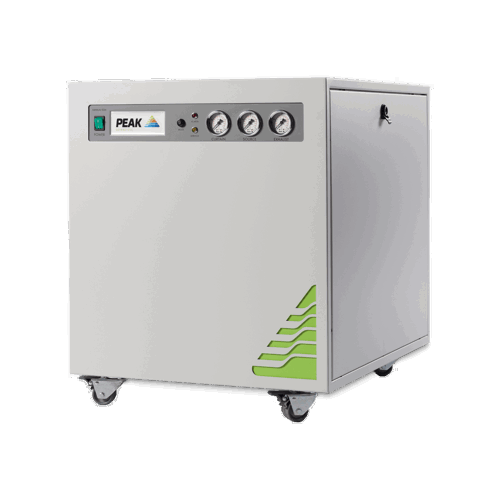

Genius 1024 LC-MS nitrogen generator

Designed exclusively to meet the needs of SCIEX LC-MS systems and approved by SCIEX for use with all their RUO (Research Use Only) LC-MS systems, the Genius 1024 provides a compact single source gas solution for Sciex LC-MS instruments..


The Genius 1024 is built around the trusted and proven technology of PEAK Scientific’s Genius series of generators. Designed mainly for LC-MS applications, these are self-contained systems featuring integrated compressors, delivering laboratory-grade nitrogen at various pressures and flow rates required by numerous instruments.

Read more
Request a quote

Features

  • Supports Sciex MS
  • Delivers nitrogen as curtain gas and dry air as source and exhaust gas
  • Compact, under bench solution with low lifetime running costs
  • Compressor based solution, no need for an external air supply
  • High-specification latest generation compressors located in insulated chamber reducing noise and vibration
  • Service indication to allow planning of preventative maintenance
  • Minimal set-up required
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 19*L/min

Max Output Pressure: 65psi/4.5bar


Gas Type: Air

Max Gas Flow: 26*L/min

Max Output Pressure: 100psi/6.9bar


Gas Type: Air

Max Gas Flow: 25*L/min

Max Output Pressure: 60psi/4.1bar

Site & Installation

Gas Outlets Fitting: 3 x 1/4" BSPP

Start Up Time: 60 mins

Power Consumption: 1610 VA

Voltage: 230 ± 10% V

Frequency: 50 / 60 Hz

Current: 7 A

Heat output: 5,490 BTU/hr

Max Operating Temp: 30°C / 86°F

Particles: <0.01µm

Phthalates: none

Suspended Liquids: none

Accreditations: CE, CSA

Dimensions & weight

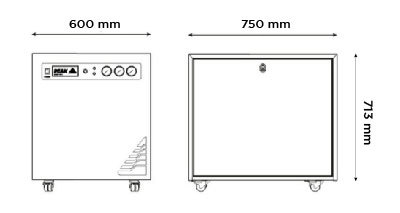

Genius 1024 Dimensions

Size (HxWxD) mm: 709 x 600 x 750 mm

Size (HxWxD) Inches: 27.9 x 23.6 x 29.5 inches

Generator Weight: 108.5kg / 238.7lbs
