Application Types LC-MS

Part number: 10-9558

Status Available i

Gas types Nitrogen Air

Integrated compressor Yes

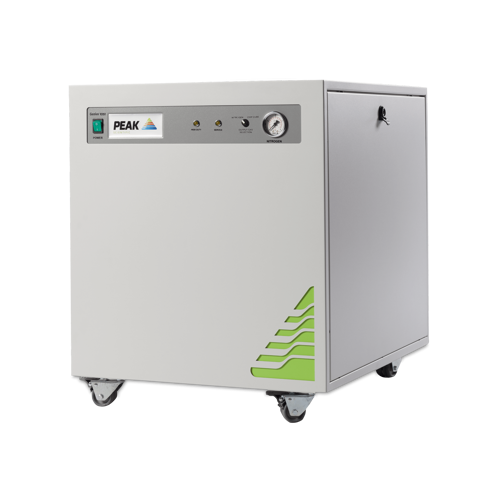

Genius 1051 PSA Nitrogen Generator

The Genius 1051 PSA Carbon Molecular Sieve nitrogen (CMS) generator has been developed to provide nitrogen gas and dry air to the Shimadzu LC-MS-8045, 8050 or 8060 to labs with electrical supply of up to 230V. We've built the Genius 1051 with two internal air compressors as standard, this removes the reliance upon an in-house air supply The configuration allows users to change the flow ratio of nitrogen and dry air, such that the total flow is 25L/min, split between nitrogen and dry air.

Request a quote

Features

  • Innovative CMS and PSA technology ensures high performance
  • Compressor based solution, no need for an external air supply
  • Minimal set-up required
  • Highly economical source of nitrogen gas with low lifetime running costs
  • The latest generation of compressors located in an insulated chamber reducing noise and vibration
  • Service indication to allow planning of preventative maintenance
  • Gas is supplied on demand so generator works to your schedule
  • Wheels make it easy to manoeuvre generator around the lab
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 25L/min

Max Output Pressure: 110psi/7.6bar


Gas Type: Air

Max Gas Flow: 25L/min

Max Output Pressure: 100psi/6.9bar

Site & Installation

Start Up Time: 30 mins

Voltage: 230 ± 10% VAC

Frequency: 50 / 60 Hz

Current: 7 Amps

Accreditations: CE, CSA

Dimensions & weight

Genius 1050,51,52,53,61 Dimensions 01

Size (HxWxD) mm: 713 x 600 x 750 mm

Size (HxWxD) Inches: 28.1 x 23.6 x 29.5 inches

Generator Weight: 118kg / 259.6lbs
