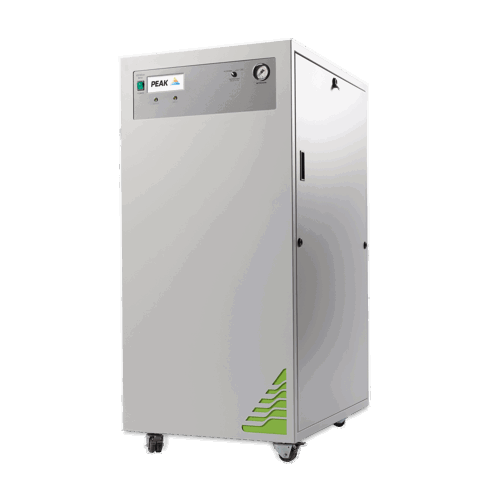

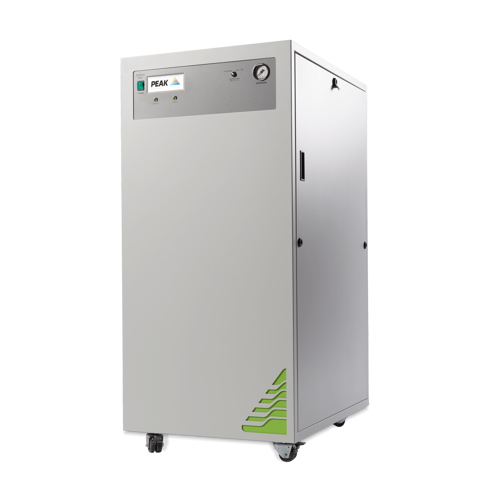

Genius 3013 Oxygen-rich nitrogen gas generator
Specifically developed to support Chip Cube applications on the 6490 QQQ and 6550 Q-TOF mass spectrometers, which demand a much higher gas flow. The Genius 3013 nitrogen generator can be switched to provide either laboratory-grade nitrogen or the 10% oxygen-rich nitrogen required for Agilent Technologies' Chip Cube instrument.
Features
- Delivers a single output of either LC-MS grade nitrogen or 10% oxygen-rich nitrogen for Agilent Chip Cube
- Higher flow rate 30 series generator designed for hungrier LC-MS applications
- Compressor based solution, no need for an external air supply
- Minimal set-up required
- Highly economical source of nitrogen gas with low lifetime running costs
- The latest generation of compressors located in an insulated chamber reducing noise and vibration
- Service indication to allow planning of preventative maintenance
- Gas is supplied on demand so generator works to your schedule
- Wheels make it easy to manoeuvre generator around the lab
- 12 month comprehensive on-site warranty
Gas
Gas Type: Nitrogen
Max Gas Flow: 64L/min
Max Output Pressure: 100psi/6.9bar
Max Purity: up to 10% O2
Site & Installation
Start Up Time: 30 mins
Voltage: 230 ± 10% VAC
Frequency: 50 / 60 Hz
Current: 13 Amps
Accreditations: CE, CSA
Dimensions & weight
![Genius Nitrogen Generator 3030, 31 Dimensions](/media/k04l5b1l/genius-3030-31-dimensions.jpg?anchor=center&mode=crop&rnd=132308180960170000)
Size (HxWxD) mm: 1322 x 600 x 850 mm
Size (HxWxD) Inches: 52 x 23.6 x 33.5 inches
Generator Weight: 189kg / 415.8lbs
