Part number:
10-6327
Status Obsoleted i
Integrated compressor Yes
![Genius 3070 Nitrogen Generator](/media/zk5dusk5/genius-3070-nitrogen-generator.png?anchor=center&mode=crop&quality=80&width=500&height=500&rnd=132463718306370000)

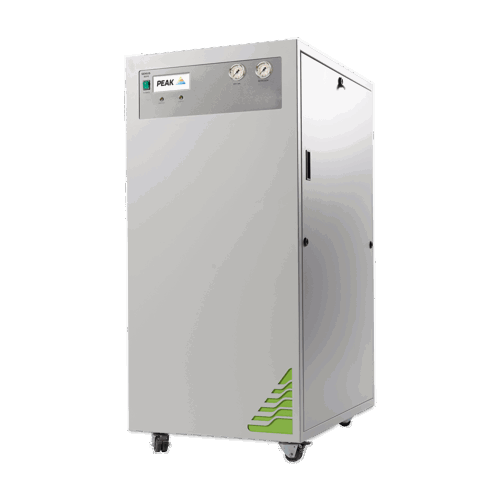

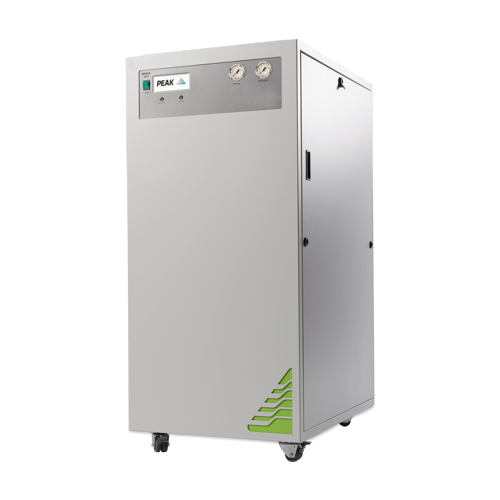

Genius 3070 gas generator
The Genius 3070 has been engineered for applications requiring a source of dry air as nebulizer or heating gas and air as exhaust gas. This generator contains four compressor systems providing flow rates of up to 34 L/min of dry air and 31 L/min of air.
Features
- Intelligent system will generate gas only when the instrument it is connected to demands it
- Higher flow 30 series generator designed for hungrier LC-MS applications
- Compressor based solution, no need for an external air supply
- Minimal set-up required
- Highly economical source of hydrocarbon free air with low lifetime running costs
- The latest generation of compressors located in an insulated chamber reducing noise and vibration
- Service indication to allow planning of preventative maintenance
- Gas is supplied on demand so generator works to your schedule
- 12 month comprehensive on-site warranty
Gas
Gas Type: Air
Max Gas Flow: 34L/min
Max Output Pressure: 110psi/7.6bar
Gas Type: Air
Max Gas Flow: 31L/min
Max Output Pressure: 90psi/6.2bar
Site & Installation
Start Up Time: 30 mins
Power Consumption: 2990 VA
Voltage: 230 ± 10% V
Frequency: 50 / 60 Hz
Current: 12 Amps
Heat output: 10196 BTU
Max Operating Temp: 35°C / 95°F
Particles: <0.1μm
Phthalates: none
Accreditations: CE

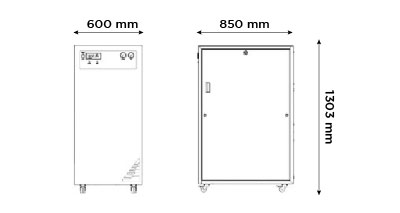

Dimensions & weight
![Genius 3070 Dimensions 01](/media/cphjuccg/genius-3070-dimensions-01.jpg?anchor=center&mode=crop&rnd=132230550787300000)
Size (HxWxD) mm: 1303 x 600 x 850 mm
Size (HxWxD) Inches: 51.3 x 23.6 x 33.5 inches
Generator Weight: 199kg / 437.8lbs
