Genius XE SCI N - Available only for Indian territories

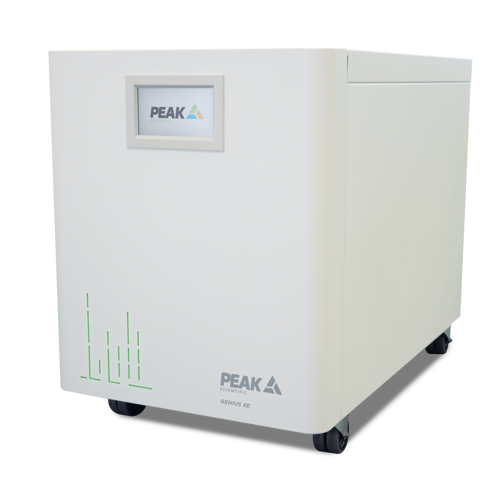

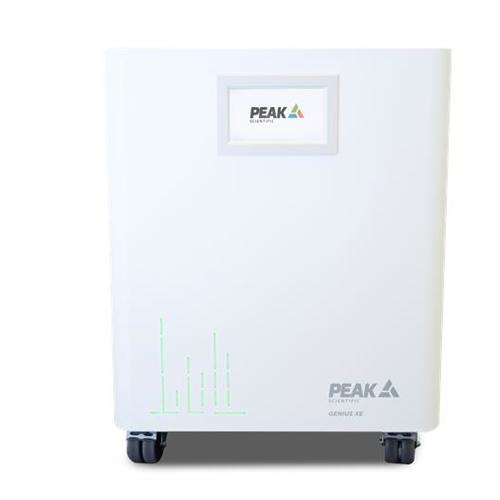

Developed in collaboration with SCIEX for high-sensitivity analysis, the Genius XE SCI N gas generator is an evolution in laboratory gas generation combining advanced technology with refined and robust engineering. A premium standalone nitrogen and air solution for SCIEX LC-MS systems carrying out high-sensitivity analysis of Nitrosamines (including NDMA).
The outcome of years of development and testing, the Genius XE SCI N delivers a reliable and cost-efficient source of both nitrogen (Curtain Gas) and clean, dry oil-free air for source and exhaust gas at flows and pressures configured to meet SCIEX systems. With a once-annual service schedule and a compact footprint, to fit under most lab benches, Genius XE SCI N is a convenient solution for SCIEX users, maximizing uptime and productivity.
Features
- Nitrogen outlet for curtain gas and two air outlets for source and exhaust gas
- Improved nitrogen purity & dryness
- Improved dry air quality
- Designed specifically for Nitrosamine analysis (including NDMA)
- 24/7 performance with premium compressors to ensure maximum uptime of your LC-MS instruments
- Multi-Stage Purifi cationTM to reduce moisture and contaminants providing consistent quality of gas
- Significantly reduced footprint, to fit under most standard lab benches
- No external compressed air source required
- 5-year extended warranty available
Gas
Gas Type: Nitrogen
Max Gas Flow: 26L/min
Max Output Pressure: 60psi/4.1bar
Max Purity: 99.95%
Gas Type: Air
Max Gas Flow: 32L/min
Max Output Pressure: 105psi/7.2bar
Gas Type: Air
Max Gas Flow: 25L/min
Max Output Pressure: 70psi/4.8bar
Site & Installation
Gas Outlets Fitting: 3x 1/4” BSPP
Power Consumption: 1.45kW
Voltage: 220-240V
Frequency: 50/60Hz
Heat output: 4998BTU/hr
Max Operating Temp: 30°C / 86°F
Particles: <0.01μm
Phthalates: None
Suspended Liquids: None
Noise Level: 65
Accreditations: CE, FCC, CSA
Dimensions & weight
Size (HxWxD) mm: 740 x 570 x 937 mm
Size (HxWxD) Inches: 29.1 x 22.4 x 36.9 inches
Generator Weight: 138kg / 303.6lbs
