Application Types LC-MS

Part number: 3303886

Status Available i

Integrated compressor Yes

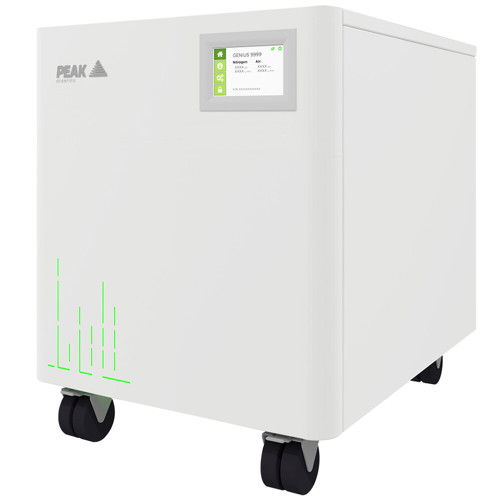

Genius XE SMZ Nitrogen Gas Generator

Approved and validated by Shimadzu as the gas solution for the latest high performance Shimadzu LC-MS instruments, Genius XE SMZ combines advanced technology with refined and robust engineering to provide a premium standalone on-demand nitrogen and air gas generator. Built upon the best-in-class Genius XE nitrogen generator series, Genius XE SMZ provides labs a dependable, high purity gas supply where performance and reliability are paramount.

With dual outlets (1 x nitrogen, 1 x air), Genius XE SMZ has been precision engineered to provide LC-MS grade nitrogen on-demand from a small and quiet gas generator. Featuring Multi-Stage Purification™ and next-generation integrated compressors with Electronic Compressor Optimization™ (ECO) technology, Genius XE SMZ can comfortably support the latest Shimadzu LC-MS instruments including the LCMS-8060NX.

Read more
Request a quote

Features

  • Validated and approved by Shimadzu to meet the demands of the latest Shimadzu LC-MS instruments
  • Multi-Stage Purification™ to efficiently remove moisture and contaminants, providing a consistent quality of gas
  • Low impact on lab environment with low noise and heat emissions
  • Next-generation high performance premium compressors, engineered exclusively for Genius XE
  • Touch-screen full color user interface for ease of use and operation
  • ECO (Electronic Compressor Optimisation™) technology for low energy consumption and compressor durability
  • Fixed annual maintenance schedule
  • 2 year comprehensive manufacturer’s warranty*



*Year 2 of warranty subject to generator being serviced at end of year 1 by a PEAK-approved agent in accordance with fixed annual maintenance schedule. For full terms and conditions visit www.peakscientific.com/warranty-statement

Gas

Gas Type: Nitrogen

Max Gas Flow: 27L/min

Max Output Pressure: 100psi/6.9bar


Gas Type: Air

Max Gas Flow: 29L/min

Max Output Pressure: 99psi/6.8bar

Site & Installation

Gas Outlets Fitting: 2 x ¼” BSPP

Start Up Time: 30 min

Power Consumption: 1.64 kVA

Voltage: 220 - 240v ±10%

Frequency: 50/60 Hz

Current: 9 Amps

Heat output: <5545 BTU

Max Operating Temp: 30°C / 86°F

Particles: <0.01µm

Phthalates: None

Suspended Liquids: None

Noise Level: 57dB(A) @ 1m

Accreditations: CE, FCC

Dimensions & weight

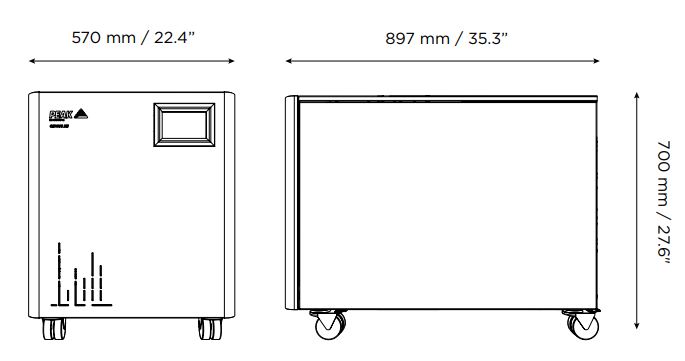

Genius XE SMZ Dims

Size (HxWxD) mm: 700 x 570 x 897 mm

Size (HxWxD) Inches: 27.6 x 22.4 x 35.3 inches

Generator Weight: 129kg / 283.8lbs
