Application Types LC-MS, CAD & ELSD, Sample Preparation

Part number: 3304532

Status Available i

Integrated compressor Yes

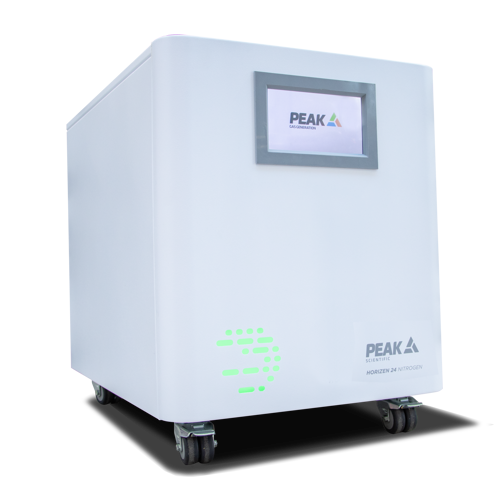

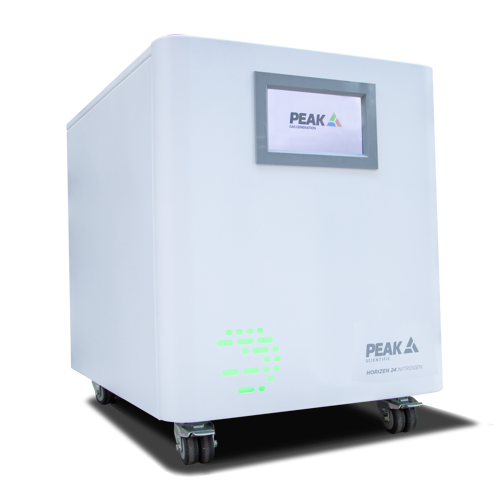

Horizen 24

Bringing Single Quad LC-MS users the very latest in nitrogen gas generator technology, Horizen 24 is the culmination of over 25 years at the forefront of nitrogen gas generation for the lab from PEAK Scientific.

Designed to provide a premium, yet cost-effective nitrogen solution, Horizen 24 has incorporated state-of-the-art compressor technology to efficiently manage power consumption, reducing energy costs and heat output without compromising on performance.

As a standalone solution delivering 24 liters per minute of high-purity nitrogen, up to 99.9%, from a compact footprint, Horizen 24 provides labs peace of mind and confidence in their LC-MS results.

Read more
Request a quote

Features

  • The most energy-efficient nitrogen generator on the market
  • Ultra-dry, non-methane hydrocarbon-free nitrogen at up to 99.9% purity and up to 116 psi
  • 55% less energy, saving power consumption*
  • Reduction in heat output by over 50%, saving on air conditioning costs*
  • 2-year comprehensive manufacturer’s warranty**
  • The smallest nitrogen generator in its class, fitting easily under any lab bench
  • Minimized operational carbon footprint compared with cylinders and equivalent generator models
  • State-of-the-art patented AirMax™ technology
  • Easy to plan annual maintenance

* Benchmarked against equivalent competitor

**Year 2 of warranty subject to generator being serviced at end of year 1 by a PEAK-approved agent in accordance with fixed annual maintenance schedule. For full terms and conditions visit: www.peakscientific.com/warranty-statement

Gas

Gas Type: Nitrogen

Max Gas Flow: 24L/min

Max Output Pressure: 116psi/8bar

Max Purity: 99.9%

Site & Installation

Gas Outlets Fitting: 1 x ¼” BSPP

Power Consumption: 559W @230V, 625W @120V, 636W @100V

Voltage: 100-240V +/- 10%

Frequency: 50/60Hz

Current: 6.4-2.9A

Heat output: 230V - 1907 BTU/hr / 120V 2132 BTU/hr / 100V- 2172 BTU/hr

Max Operating Temp: 35°C / 95°F

Particles: < 0.01 μm

Phthalates: Phthalate & BHT Free

Suspended Liquids: None

Noise Level: 59dB(A) @ 1m

Accreditations: CE, FCC, CSA, UKCA

Dimensions & weight

Horizen 24 Dimensions 01 1

Size (HxWxD) mm: 524 x 450 x 720 mm

Size (HxWxD) Inches: 20.6 x 17.7 x 28.3 inches

Generator Weight: 59kg / 129.8lbs
