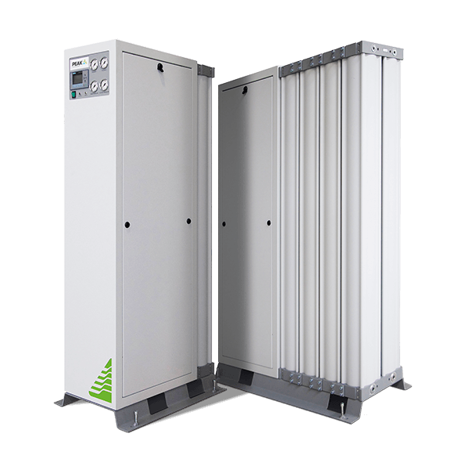

i-FlowLab 6XX2 laboratory nitrogen supply
i-Flow from Peak Scientific provides a total laboratory solution for on-site generation of nitrogen gas.
Applications: LC-MS, GC & GC-MS, ICP-MS, FT-IR, MP-AES, CAD & ELSD, Sample Preparation
Application Types LC-MS, GC & GC-MS, ICP-MS, FT-IR, MP-AES, CAD & ELSD, Sample Preparation
Part number:
20-6011
20-6021
20-6031
20-6041
20-6051
20-6061
20-6071
20-6081
20-6091
20-6101
Status Discontinued i
Integrated compressor No

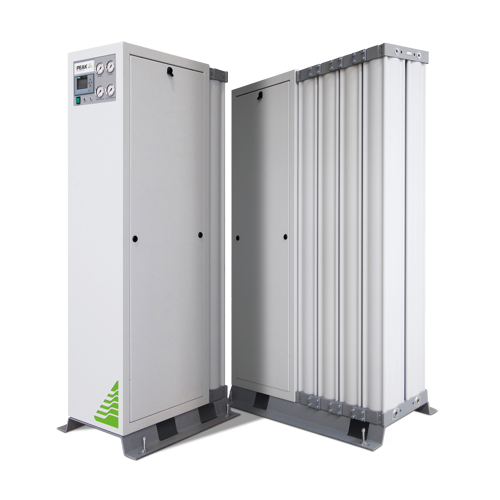

i-FlowLab 6XX1 nitrogen generator
i-FlowLab is a total laboratory on-site nitrogen gas solution for customers with high flow demands or high purity applications and is capable of delivering a consistent & reliable supply of gas on-demand.
Engineered based on robust PSA technology, i-FlowLab 6XX1 nitrogen generators are available in over 100 pre-configured specifications, designed to suit the full and varying demands of your facility, with flow rates ranging from 116-4253 L/min at purities up to 99.5%.
Modular & scalable, i-FlowLab is designed as a future-proof solution, with the ability to be expanded retrospectively, with the addition of CMS columns, in order to increase capacity and accommodate future growth in requirements.
i-FlowLab is an ideal complete laboratory solution for multiple applications, such as LC-MS, Sample Preparation, Gloveboxes and many more.
Read more
View active replacement
Features
- Cost effective, total laboratory nitrogen gas supply solution
- Consistent & reliable, always available on-demand to meet application needs
- Energy efficient, with low ongoing running costs & minimal maintenance
- Scalable & future-proof design, with ability to expand capacity by adding more CMS columns
- Safe and convenient, no more manual handling or on-site health & safety concerns
- Verified industry standards compliance (EIGA, European Pharmacopoeia, JECFA & US FDA)

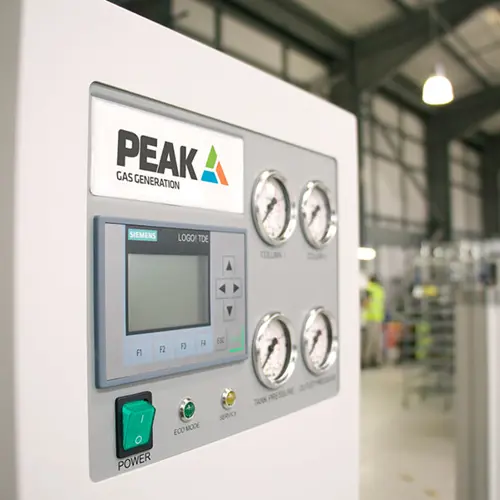

- Build-in oxygen analyzer, for continuous, real time monitoring of nitrogen purity & quality
- Optional purity safeguard, auto-bypass feature for purity critical applications
- Take complete control of your costs & nitrogen gas requirements, by bringing your supply in-house
- Eliminate the need for gas cylinders, LN2 dewars /micro-bulk deliveries or large bulk liquid trucking
- Reduce your on-site carbon footprint & become a self-reliant and sustainable operation
Gas
Gas Type: Nitrogen
Min Gas Flow: 116L/min
Max Gas Flow: 4253L/min
Max Output Pressure: 130psi/9bar
Max Purity: 99.5%
Site & Installation
Max Inlet Pressure: 145psi/10bar
Min Air Inlet Flow: Dependent on required flow rate
Min Inlet Air Quality: ISO 8573-1:2010 Class 1.4.1
Start Up Time: Dependent on model
Power Consumption: 250 Watts
Voltage: 100-230 ± 10% VAC
Frequency: 50 / 60 Hz
Current: 2.0-1.0 Amp
Max Operating Temp: 50°C / 122°F
Particles: <0.01µm
Noise Level: 59dBa @1m
Accreditations: CSA, CE
Dimensions & weight
Size (HxWxD) mm: 1738 x 500 x 760 mm
Size (HxWxD) Inches: 68.4 x 19.7 x 29.9 inches
Generator Weight: 197kg / 433.4lbs
Service Requirements
Annual maintenance
Annual O2 analyzer calibration (optional)
Replace O2 analyzer every 4 years
General
Expand to meet demand: i-Flow Lab can be expanded to include up to 10 banks. Each bank is 160mm (6.3") and total depth of a 10 bank system including the i-FlowLab system is 2200mm (86.61").
i-FlowLab Reviews
Joseph Robinson - Nurix, Inc.
"Unbelievably dependable system, operating within a consistent range of pressure and purity that supports all of our scientific lab operations."
A centralized system like i-FlowLab represents a huge saving over cylinders and liquid delivery systems and produces gas of higher purity (i.e. lower noise in the mass spec traces).Frankie Busetti
Edith Cowan University, Australia
I would strongly recommend the i-FlowLab to just about any industry that needs a pure, reliable source of nitrogen. The system has a small carbon footprint, is reliable, compact and can be easily installed in a mechanical room inside a facility.Scott Cobranchi
Sealed Air Corporation
I would definitely recommend for the following reasons: Single point solution, Easy maintenance, Avoids space & noise constraint inside the lab.Rajesh Kumar Suvvaru
ZenRise Clinical Research Pvt Ltd
