Application Types LC-MS

Part number: 13-1276

Status Discontinued i

Gas types Nitrogen Air

Integrated compressor No

Infinity 1034 Nitrogen Generator

Membrane technology is at the heart of the Infinity 1034, generating laboratory-grade nitrogen on-site to users with an existing air supply. With the ability to perform at its maximum 24 hours a day, if required, and minimum maintenance requirements, the Infinity 1034 is a durable, hassle-free solution for SCIEX LC-MS instruments requiring curtain gas flows of up to 72L/min, source gas flows of up to 104L/min and exhaust gas flows of up to 100L/min.

View active replacement

Features

  • Capable of supplying multiple SCIEX LC-MS instruments
  • 24/7 operation at optimum performance if required
  • Gas is supplied on demand so generator works to your schedule
  • Few moving parts means little maintenance required and ensures long life of the generator
  • Minimal set-up required
  • Completely silent in operation
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Min Gas Flow: 0L/min

Max Gas Flow: 76L/min

Max Output Pressure: 65psi/4.5bar


Gas Type: Air

Max Gas Flow: 104L/min

Max Output Pressure: 110psi/7.6bar


Gas Type: Air

Max Gas Flow: 100L/min

Max Output Pressure: 110psi/7.6bar

Site & Installation

Min Inlet Pressure: 120psi/8.3bar

Max Inlet Pressure: 145psi/10bar

Min Air Inlet Flow: 475

Min Inlet Air Quality: ISO8573 - 1:2010 Class 1.4.1

Start Up Time: 60 mins

Power Consumption: none

Voltage: N/A

Frequency: N/A

Current: N/A

Heat output: none

Max Operating Temp: 30°C / 86°F

Particles: <0.01 ‎μm

Phthalates: none

Suspended Liquids: none

Accreditations: CE

Dimensions & weight

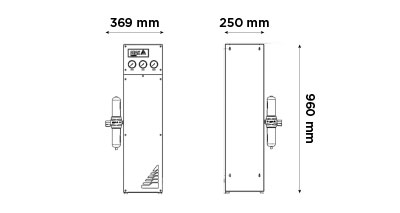

Infinty 1034 Dimensions 01

Size (HxWxD) mm: 960 x 369 x 250 mm

Size (HxWxD) Inches: 37.8 x 14.5 x 9.8 inches

Generator Weight: 21kg / 46.2lbs
