Genius 1051 PSA Nitrogen Generator
The Genius 1051 PSA Nitrogen Generator is designed to supply nitrogen gas and dry air for Shimadzu LC-MS-8045, 8050 or 8060.
Applications: LC-MS

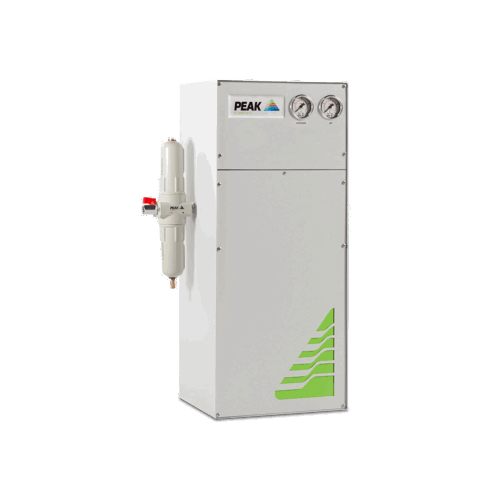

Infinity 1051 Nitrogen Generator
Designed and engineered as an on-site, compressorless nitrogen generation solution tailored for the Shimadzu LCMS-8045, 8050 or 8060, the Infinity 1051 delivers one output of nitrogen and another of dry air to laboratories who already have an existing air supply.
Request a quoteFeatures
- Both a nitrogen and dry air output suitable for the Shimadzu LCMS-8045/50/60 and instruments requiring similar specifications
- 24/7 operation at optimum performance if required
- Gas is supplied on demand so generator works to your schedule
- Few moving parts means little maintenance required and ensures long life of the generator
- Minimal set-up required
- Completely silent in operation
- 12 month comprehensive on-site warranty
Gas
Gas Type: Nitrogen
Min Gas Flow: 0
Max Gas Flow: 25
Max Output Pressure: 100psi/6.9bar
Gas Type: Air
Max Gas Flow: 25L/min
Max Output Pressure: 110psi/7.6bar
Site & Installation
Min Inlet Pressure: 120psi/8.3bar
Max Inlet Pressure: 145psi/10bar
Min Air Inlet Flow: 110
Min Inlet Air Quality: ISO8573 - 1:2010 Class 1.4.1
Start Up Time: 60 mins
Power Consumption: none
Voltage: N/A
Frequency: N/A
Current: N/A
Heat output: none
Max Operating Temp: 30°C / 86°F
Particles: <0.01 μm
Phthalates: none
Suspended Liquids: none
Accreditations: CE

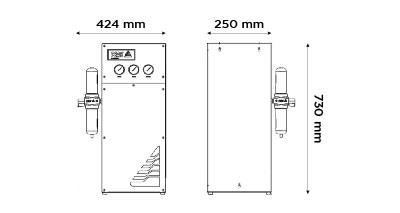

Dimensions & weight
Size (HxWxD) mm: 730 x 424 x 250 mm
Size (HxWxD) Inches: 28.7 x 16.7 x 9.8 inches
Generator Weight: 21kg / 46.2lbs
