Application Types LC-MS, Sample Preparation
Part number:
13-5020
Status Obsoleted i
Integrated compressor No
![Infinity 5020 Nitrogen Generator](/media/r1lnlwgm/infinity-5020-nitrogen-generator.png?anchor=center&mode=crop&quality=80&width=500&height=500&rnd=132461250589470000)

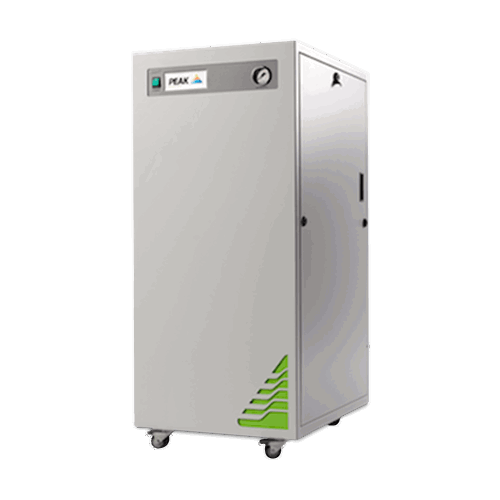

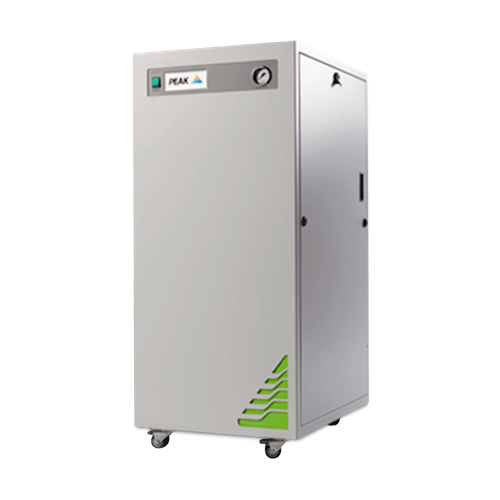

Infinity 5020 Nitrogen Generator
The Infinity 50 Series compressorless nitrogen generator utilizes membrane technology to deliver higher nitrogen flows for multiple LC-MS or LC-MS/MS instruments, Sample Evaporator and NMR applications, utilising an existing in-house supply of compressed air.
View active replacementFeatures
- Delivers laboratory-grade nitrogen at up to 120 L/min
- 24/7 operation at optimum performance if required
- Gas is supplied on demand so generator works to your schedule
- Few moving parts means little maintenance required and ensures long life of the generator
- Minimal set-up required
- Completely silent in operation
- 12 month comprehensive on-site warranty
Gas
Gas Type: Nitrogen
Min Gas Flow: 0
Max Gas Flow: 120
Site & Installation
Min Inlet Pressure: 120psi/8.3bar
Max Inlet Pressure: 145psi/10bar
Start Up Time: 60 mins
Voltage: 230 ± 10% VAC
Frequency: 50 Hz
Current: 0.123 Amps
Accreditations: CE
Dimensions & weight
![Infinity 9010 Dimensions 01](/media/3jada1gc/infinity-9010-dimensions-01.jpg?anchor=center&mode=crop&rnd=132230557483830000)
Size (HxWxD) mm: 1150 x 500 x 800 mm
Size (HxWxD) Inches: 45.3 x 19.7 x 31.5 inches
Generator Weight: 75kg / 165lbs
