Application Types LC-MS

Part number: 13-5060

Status Obsoleted i

Integrated compressor No

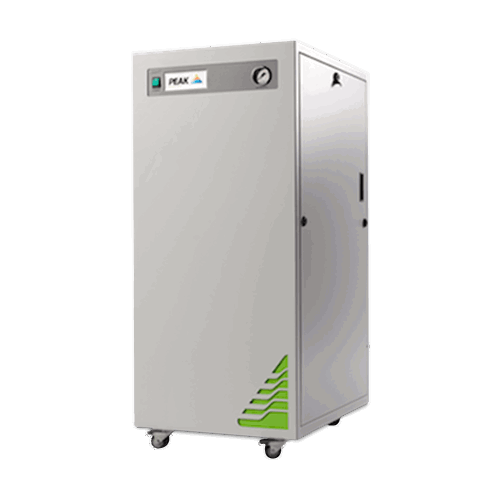

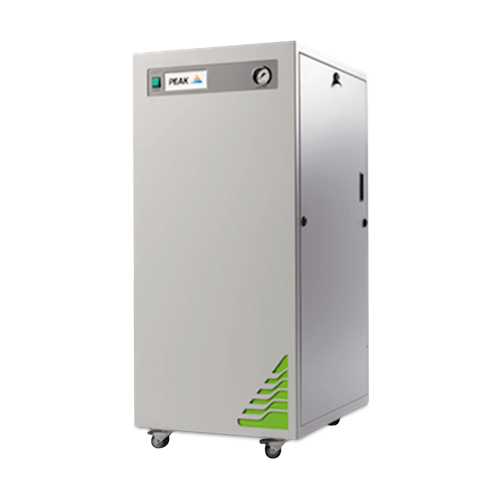

Infinity 5060 Nitrogen Generator

The Infinity 50 Series compressorless nitrogen generator utilizes membrane technology to deliver higher nitrogen flows for multiple LC-MS or LC-MS/MS instruments, Sample Evaporator and NMR applications, utilising an existing in-house supply of compressed air.

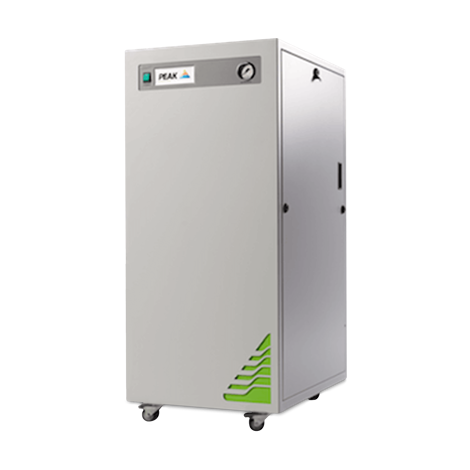

View active replacement

Features

  • Delivers laboratory-grade nitrogen at up to 360 L/min
  • 24/7 operation at optimum performance if required
  • Gas is supplied on demand so generator works to your schedule
  • Few moving parts means little maintenance required and ensures long life of the generator
  • Minimal set-up required
  • Completely silent in operation
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 360L/min

Max Output Pressure: 100psi/6.9bar

Site & Installation

Min Inlet Pressure: 120psi/8.3bar

Max Inlet Pressure: 145psi/10bar

Min Air Inlet Flow: 180

Start Up Time: 60 mins

Voltage: 230 ± 10% VAC

Frequency: 50 Hz

Current: 0.123 Amps

Max Operating Temp: 30°C / 86°F

Accreditations: CE

Dimensions & weight

Infinity 9010 Dimensions 01

Size (HxWxD) mm: 1150 x 500 x 800 mm

Size (HxWxD) Inches: 45.3 x 19.7 x 31.5 inches

Generator Weight: 95kg / 209lbs
