Application Types Sample Preparation
Part number:
13-9010
Status Obsoleted i
Integrated compressor No

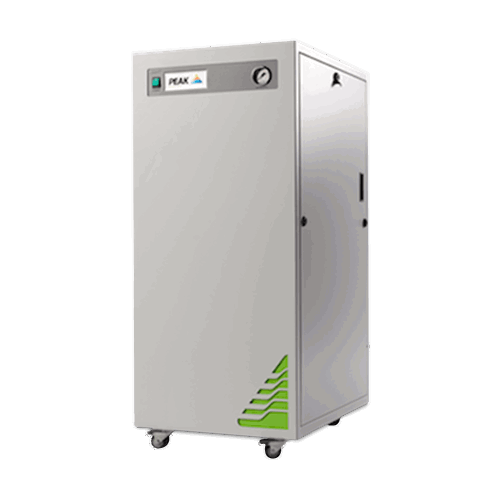

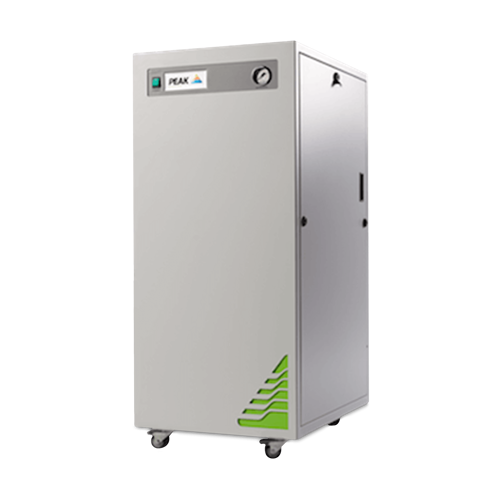

Infinity 9010 Nitrogen Generator
The Infinity 9010 compressor-less nitrogen generator utilises membrane technology to deliver nitrogen for LC-MS, sample evaporators, turbovap and other sample concentrators.
View active replacementFeatures
- Delivers laboratory-grade nitrogen at up to 140 L/min
- 24/7 operation at optimum performance if required
- Gas is supplied on demand so generator works to your schedule
- Few moving parts means little maintenance required and ensures long life of the generator
- Minimal set-up required
- Completely silent in operation
- 12 month comprehensive on-site warranty
Gas
Gas Type: Nitrogen
Max Gas Flow: 140L/min
Site & Installation
Min Inlet Pressure: 125psi/8.6bar
Max Inlet Pressure: 145psi/10bar
Min Air Inlet Flow: 140 L/min
Start Up Time: 60 mins
Voltage: 230 V
Frequency: 50 Hz
Current: 0.123 A
Max Operating Temp: 30°C / 86°F
Particles: <0.1μm
Accreditations: CE
Dimensions & weight
Size (HxWxD) mm: 1150 x 534 x 800 mm
Size (HxWxD) Inches: 45.3 x 21 x 31.5 inches
Generator Weight: 70kg / 154lbs
