Application Types Sample Preparation, LC-MS
Part number:
13-9030
Status Obsoleted i
Integrated compressor No
![Infinity 9030 Nitrogen Generator](/media/3k1dssrn/infinity-9030-nitrogen-generator.png?anchor=center&mode=crop&quality=80&width=500&height=500&rnd=132461248448770000)

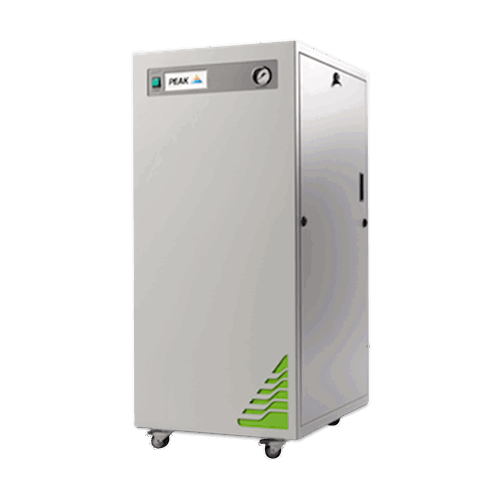

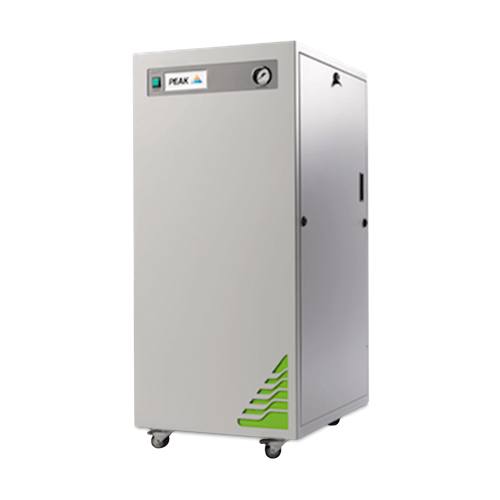

Infinity 9030 Nitrogen Generator
The Infinity 9030 compressor-less nitrogen generator utilizes membrane technology to deliver nitrogen for LC-MS, sample evaporators, turbovap and other sample concentrators.
View active replacementFeatures
- Delivers laboratory-grade nitrogen at up to 420 L/min
- 24/7 operation at optimum performance if required
- Gas is supplied on demand so generator works to your schedule
- Few moving parts means little maintenance required and ensures long life of the generator
- Minimal set-up required
- Completely silent in operation
- 12 month comprehensive on-site warranty
Gas
Gas Type: Nitrogen
Max Gas Flow: 420L/min
Max Output Pressure: 100psi/6.9bar
Site & Installation
Min Inlet Pressure: 125psi/8.6bar
Max Inlet Pressure: 145psi/10bar
Start Up Time: 60 mins
Voltage: 230 ± 10% VAC
Current: 0
Noise Level: 10
Accreditations: CE
Dimensions & weight
![Infinity 9010 Dimensions 01](/media/3jada1gc/infinity-9010-dimensions-01.jpg?anchor=center&mode=crop&rnd=132230557483830000)
Size (HxWxD) mm: 1150 x 500 x 800 mm
Size (HxWxD) Inches: 45.3 x 19.7 x 31.5 inches
Generator Weight: 80kg / 176lbs
