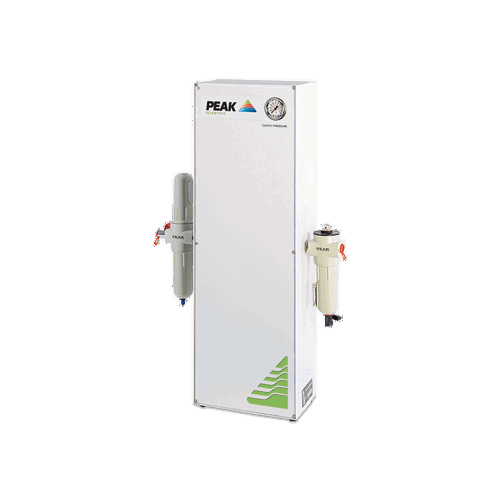

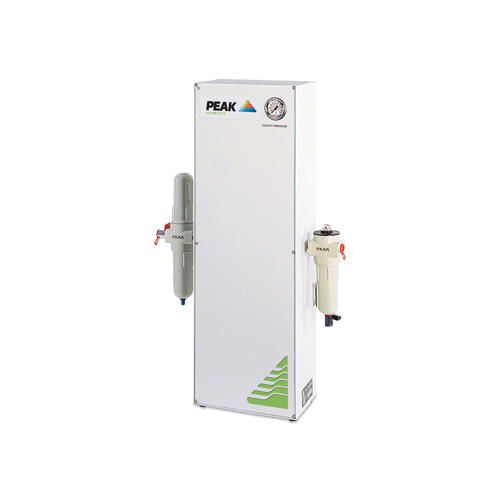

Infinity NM45L Nitrogen Generator

Infinity NM45L Nitrogen Generator

The Infinity NM45L compressor-less nitrogen generator has been engineered to cater for the requirements of LC-MS, sample evaporators, and NMR applications when connected to an external source of air.

Features

  • Delivers nitrogen at up to 45 L/min
  • This generator can supply multiple LC-MS instruments 24/7 operation at optimum performance if required
  • Highly economical source of nitrogen with low lifetime running costs
  • Few moving parts means little maintenance and ensures long life of the generator
  • Gas is supplied on demand so generator works to your schedule
  • Minimal set-up required
  • Completely silent in operation
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 45L/min

Max Output Pressure: 100psi/6.9bar

Site & Installation

Min Inlet Pressure: 120psi/8.3bar

Max Inlet Pressure: 145psi/10bar

Start Up Time: 60 mins

Dimensions & weight

Size (HxWxD) mm: 750 x 250 x 220 mm

Size (HxWxD) Inches: 29.5 x 9.8 x 8.7 inches

Generator Weight: 20kg / 44lbs

Downloads

Infinity NM18-45L User Manual (Eng)

Related Products

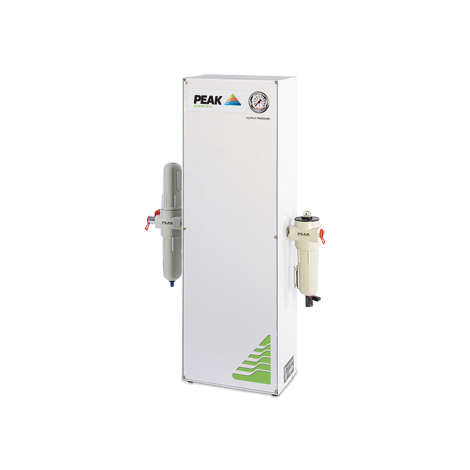

Infinity NM32L Nitrogen Generator

Infinity NM32L Nitrogen Generator

The Infinity NM32L nitrogen generator employs membrane technology to provide analytical grade nitrogen for LC-MS and a range of other laboratory applications in conjunction with an in-house compressed air supply.

Applications:

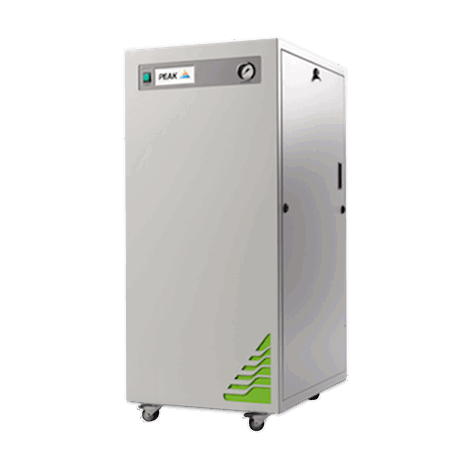

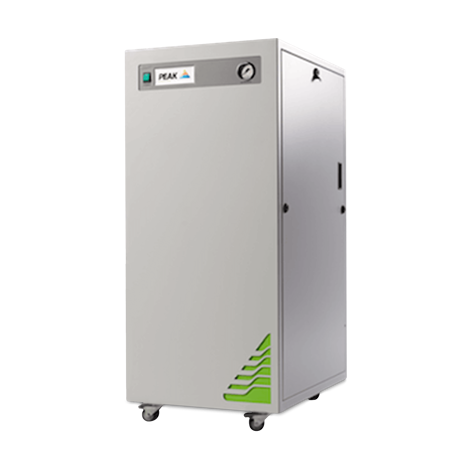

Infinity 5010 Nitrogen Generator

Infinity 5010 Nitrogen Generator

The Infinity 5010 compressor-less nitrogen generator utilizes membrane technology to deliver nitrogen for LC-MS, LC-MS-MS, Sample Evaporators and NMR applications to facilities with an existing supply of air.

Applications: LC-MS, Sample Preparation

NM32LA Nitrogen Generator for LCMS

Genius NM32LA nitrogen generators

With many thousands of units in the field, the NM32LA has become the proven and reliable nitrogen generator of choice in countless laboratories.

Applications: LC-MS

Genius 1050 Nitrogen Generator

Genius 1050 PSA Nitrogen Generator

Utilizing Carbon Molecular Sieve and Pressure Swing Adsorption technology, the Genius 1050 provides on-site nitrogen for most LC-MS instruments.

Applications: LC-MS

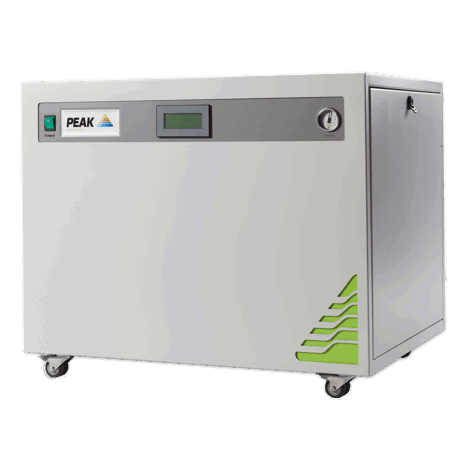

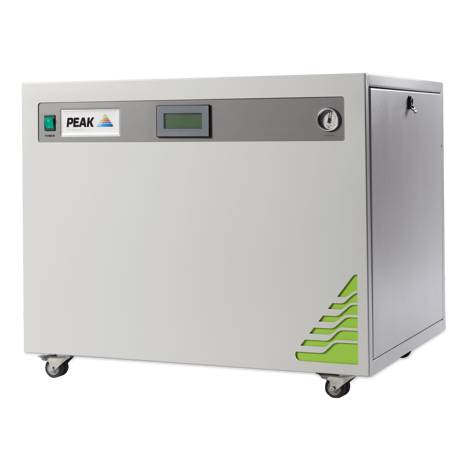

Genius NM3G Nitrogen Generator
