Application Types LC-MS, Sample Preparation, CAD & ELSD
Part number:
3300572 - XE 5010
3300189 - XE 5011
Status Discontinued i
Integrated compressor No

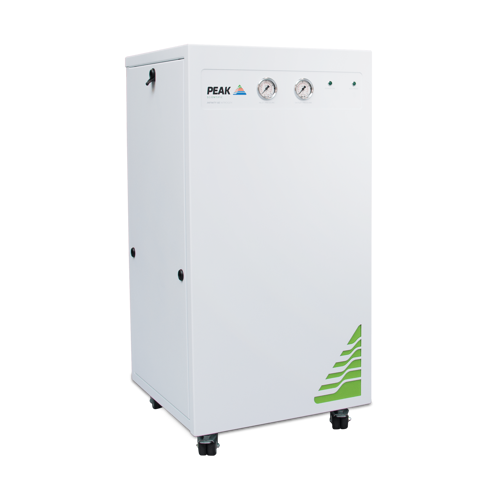

Producing between 10-130 L/min of high quality, laboratory grade nitrogen gas, the Infinity XE 501X can comfortably supply gas for multiple laboratory instruments. With variable nitrogen purity available between 95-99.5% (depending on flow rate), Infinity XE generators can be configured to suit the needs of several applications, such as LC-MS, ELSD, Sample Preparation & more.
Peak Scientific's Infinity XE series generators have been engineered to provide nitrogen gas to laboratories that already have an external source of clean, dry & oil-free air; and meets a minimum grade of ISO8573-1:2010 Class 1.4.1 - NB: Were this is not available, Peak can provide consultative assistance on what specifications of compressed air & pre-filtration are required, as well as supply these items as part of a complete Infinity XE gas generation solution.
Infinity XE series nitrogen generators are effectively silent whilst in operation and have no moving parts, so require minimal annual maintenance.
Models available with or without optional O2 analyzer & purity safeguard system.
Gas Type: Nitrogen
Min Gas Flow: 10L/min
Max Gas Flow: 130*L/min
Max Output Pressure: 135psi/9.3bar
Max Purity: 99.5% *
Min Inlet Pressure: 60psi/4.1bar
Max Inlet Pressure: 145psi/10bar
Min Air Inlet Flow: Dependent on required output flow rate and purity
Min Inlet Air Quality: ISO8573 - 1:2010 Class 1.4.1
Start Up Time: 30 mins
Power Consumption: 40 Watts
Voltage: 100-230 ± 10% VAC
Frequency: 50 / 60 Hz
Current: 0.4Amps @ 100V / 0.174Amps @ 230V
Max Operating Temp: 30°C / 86°F
Particles: <0.01µm
Accreditations: CE, FCC
Size (HxWxD) mm: 995 x 500 x 500 mm
Size (HxWxD) Inches: 39.2 x 19.7 x 19.7 inches
Generator Weight: 75kg / 165lbs
Annual maintenance
Annual O2 sensor calibration (where applicable)
