Application Types LC-MS, CAD & ELSD, Sample Preparation
Part number:
3303147AD (6010), 3303148AD (6020), 3303149AD (6030), 3303150AD (6040)
Status Available i
Integrated compressor No

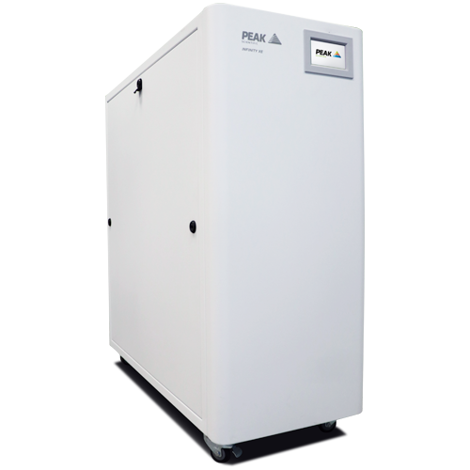

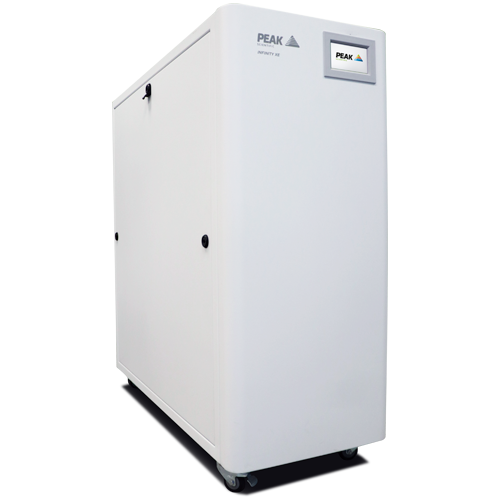

Producing between 10 and 500 L/min of high-purity nitrogen gas, the Infinity XE 60 (with dry air) series can supply multiple laboratory instruments with instrument-grade nitrogen and a second outlet of Dry Air.
The Infinity XE 60’s Intelligent Membrane Management (IMM) uniquely optimizes air consumption depending on set purity, inlet pressure/flow, and nitrogen demand, offering labs a cost-effective alternative to cylinders in a compact, space-saving nitrogen solution.
With variable nitrogen purities (95- 99.5%), XE 60 can meet the demands of numerous applications such as ELSD, NMR, FT/MS, Sample Evaporators, as well as LC-MS and, should your lab demands grow over time, Infinity XE 60 can have its nitrogen output increased on-site up to a maximum of 500 L/min all within the same original footprint.
The Infinity series of generators require an external source of compressed air, which meets a minimum quality grade of ISO 8573-1:2010 Class 1.4.1. PEAK can assist with external compressors & pre/post filtration as part of delivering a complete solution for your needs.
* Dependent on inlet pressure, inlet/outlet flow & Nitrogen purity setting
** Subject to meeting 2-year warranty conditions www.peakscientific.com/warranty-statement/
*** Please allow for an additional compressed air requirement of 262L/min to support the Dry Air output
Gas Type: Nitrogen
Min Gas Flow: 10L/min
Max Gas Flow: 500*L/min
Max Output Pressure: 135 Psi (Depending on Inlet Pressure)
Max Purity: up to 99.5%
Gas Type: Air
Max Gas Flow: 210L/min
Max Output Pressure: Up to 135 Psi (depending on inlet supply)
Min Inlet Pressure: 60psi/4.1bar
Max Inlet Pressure: 145psi/10bar
Min Air Inlet Flow: Dependent on required flow and purity***
Min Inlet Air Quality: ISO 8573-1:2010 Class [1.4.1]
Power Consumption: 0.1 kW
Voltage: 100 - 230 VAC +/- 10%
Frequency: 50 / 60 Hz
Current: 0.5A @ 110V / 0.25A @ 230V
Max Operating Temp: 30°C / 86°F
Particles: <0.01µm
Accreditations: CE, CSA

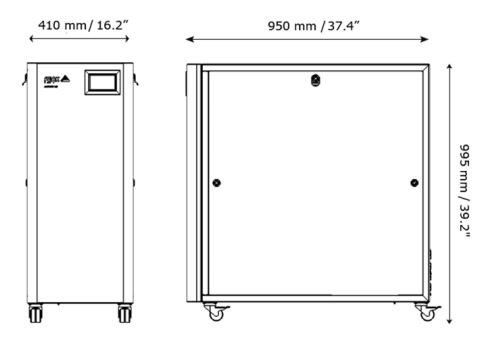

Size (HxWxD) mm: 995 x 410 x 950 mm
Size (HxWxD) Inches: 39.2 x 16.1 x 37.4 inches
12 months - InfinityXE60 Series Annual Maintenance Kit
4 years - InfinityXE60 Series 4-year Maintenance Kit
"The XE 60 nitrogen generator has an excellent cost/benefit ratio. One of its features that caught my attention the most was the noise level, which is very low. In addition, the operation is very intuitive and easy."
"Great company with great customer service. The instrument will last long and provide Nitrogen to many instrument for many years."
PEAK's ROI calculator is an easy-to-use online tool that will quickly help you see when you can expect to make a return on your investment on your gas generator. . By answering a few simple questions, we will calculate how many months it will take to make a return.
With over 20 years' worth of experience in developing gas generator technology alongside leading instrument manufacturers, we offer reliable laboratory gas solutions to meet your specific needs.
