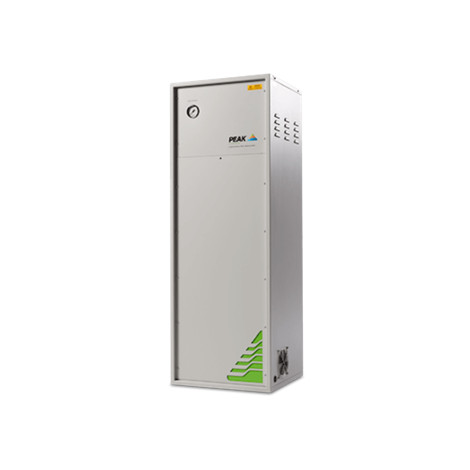

NG3000 ultra high purity nitrogen generators
The NG3000 produces ultra-high purity nitrogen within detection limits (up to 3 L/min). The pressure swing adsorption technology is used.
Applications: GC & GC-MS, ICP-MS, CAD & ELSD, CD
Application Types GC & GC-MS, ICP-MS, CAD & ELSD, CD
Part number:
10-1210 (230v) - UK
10-1220 (230v) - EU
10-1230 (110v) - US
Status Discontinued i
Integrated compressor Yes

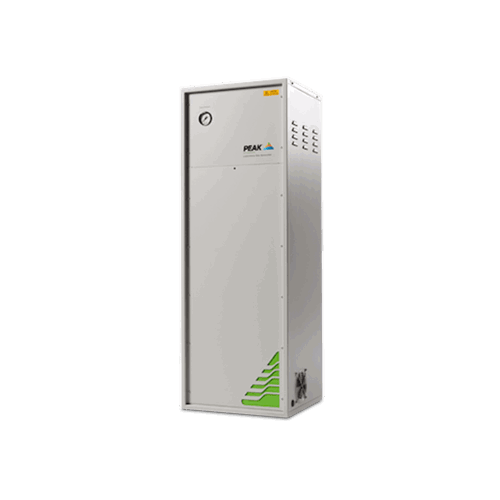

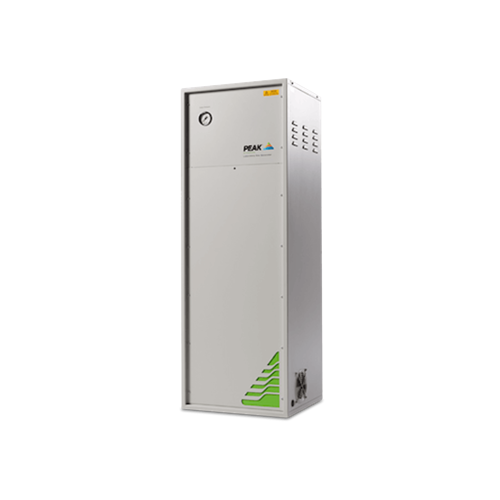

NG3000A ultra high purity nitrogen generator
The NG3000A delivers ultra high purity nitrogen at trace detection limits through Pressure Swing Adsorption technology at flows of 3 L/min for GC, DSC, DMA and other applications requiring ultra high purity nitrogen at up to 3L/min. The NG3000A comes with an internal compressor for laboratories without an external source of gas.
To reach their ultra high purity nitrogen output these generators use Pressure Swing Adsorption and Carbon Molecular Sieve. These separation technologies remove oxygen and other impurities in air, delivering hassle-free, ultra high purity nitrogen, on-demand for the lab.
Read more
View active replacement
Features
- Suitable for applications such as GC, DSC, DMA
- Suitable for applications requiring ultra high purity
- Available with or without an external compressor
- Contains self-regenerating Carbon Molecular Sieve column
- Gas is supplied on demand so generator works to your schedule
- 12 month comprehensive on-site warranty
Gas
Gas Type: Nitrogen
Min Gas Flow: 0
Max Gas Flow: 3
Max Output Pressure: 80psi/5.5bar
Max Purity: 99.9995%
Site & Installation
Voltage: 115 / 230 ± 10% VAC
Frequency: 50 / 60 Hz
Current: 3.6 Amps / 8 Amps
Accreditations: CE
Dimensions & weight

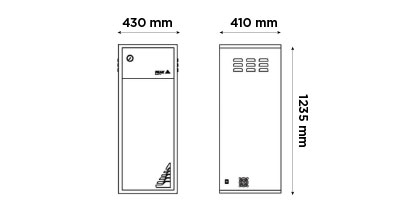

Size (HxWxD) mm: 1235 x 449 x 406.5 mm
Size (HxWxD) Inches: 48.6 x 17.7 x 16 inches
Generator Weight: 88kg / 193.6lbs
