NG4000 Nitrogen Generator
The NG4000 delivers ultra high purity nitrogen at trace detection limits through Pressure Swing Adsorption technology at flows of 4 l/min for GC applications.
Applications:
Part number:
10-1260 (230v) - UK
10-1270 (230v) - EU
10-1280 (110v) - US
Status Obsoleted i
Integrated compressor Yes

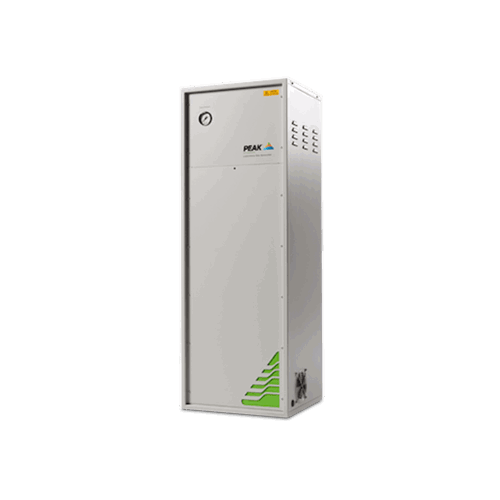

NG4000(A) Nitrogen Generator
The NG4000A delivers ultra high purity nitrogen at trace detection limits through Pressure Swing Adsorption technology at flows of 4 L/min for GC applications The NG4000A comes with an internal compressor for laboratories without an external source of gas.
View active replacementFeatures
- Suitable for applications such as GC, DSC, DMA Suitable for applications requiring ultra high purity
- Available with or without an external compressor
- Contains self-regenerating Carbon Molecular Sieve column
- Gas is supplied on demand so generator works to your schedule
- 12 month comprehensive on-site warranty
Gas
Gas Type: Nitrogen
Max Gas Flow: 4000cc/min
Max Purity: 99.9995%
Site & Installation
Min Inlet Pressure: 120 psi
Max Inlet Pressure: 130 psi
Min Air Inlet Flow: 4000 cc/min
Start Up Time: 8 Hours
Voltage: 110/230
Frequency: 50/60
Current: 0.5 Amps
Max Operating Temp: 25°C / 77°F
Dimensions & weight

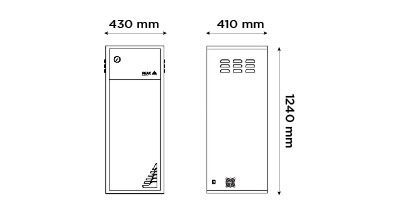

Size (HxWxD) mm: 1240 x 430 x 410 mm
Size (HxWxD) Inches: 48.8 x 16.9 x 16.1 inches
Generator Weight: 88kg / 193.6lbs
