Application Types LC-MS, CAD & ELSD
Part number:
3305373 - 220-240V
3305374 - 120V
Status Available i
Integrated compressor Yes

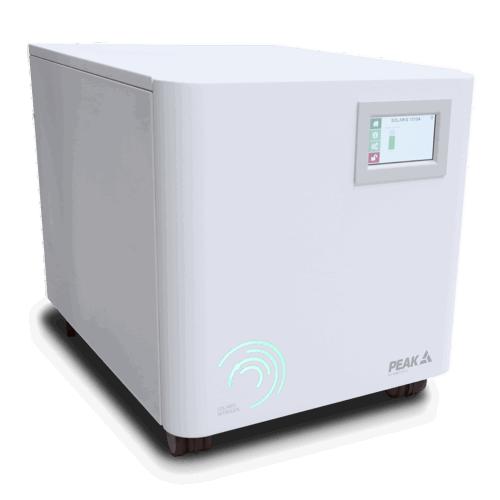

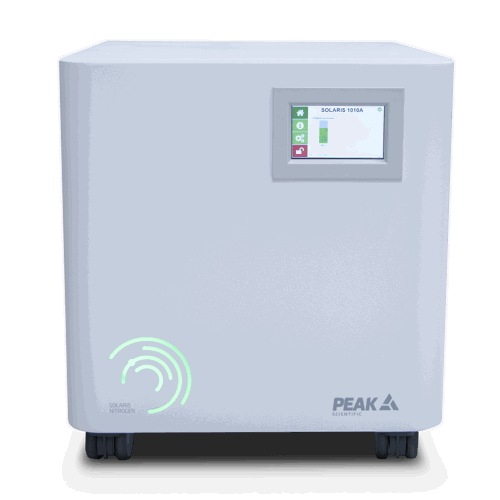

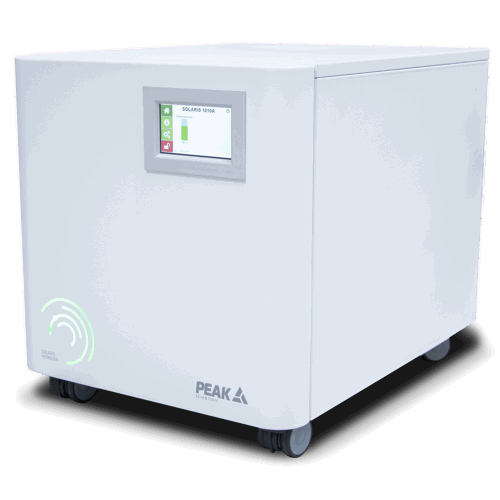

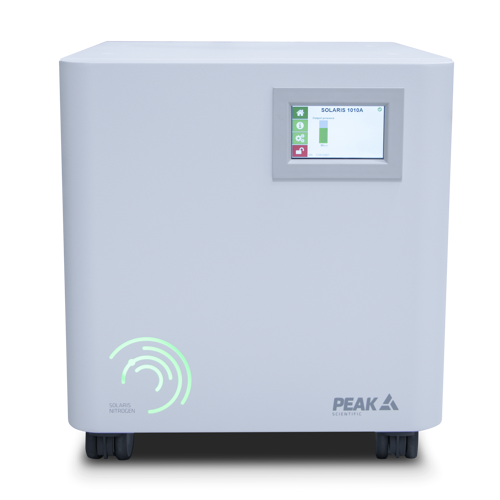

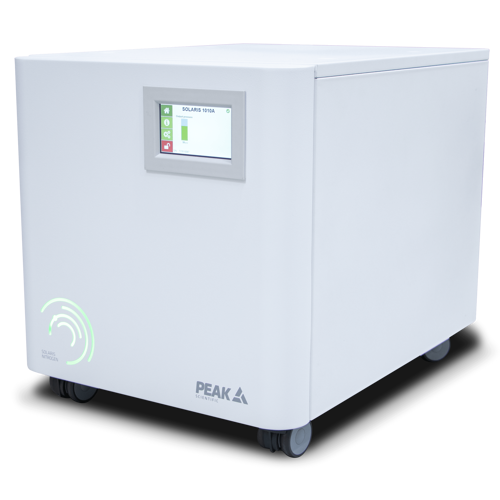

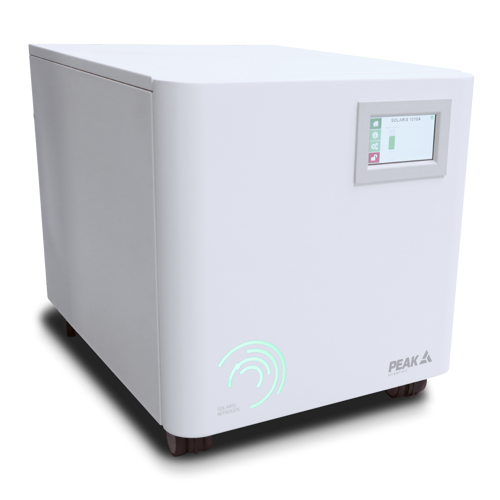

Solaris 1010A
PEAK Scientific’s Solaris 1010A nitrogen generator has been engineered using membrane technology to meet the gas delivery requirements for labs using ELSD with their High-Performance Liquid Chromatography, Compact Mass Spectrometer, or TLD reader instruments.
Solaris 1010A can operate with varying flow rates (up to 10L/ min of high purity nitrogen), purity (up to 99.5% at 4 liters/min) and outlet pressure is adjustable to 100psi max offering a flexible solution for labs.
Features
Nitrogen up to 10 L/min at up to 100 psi
Producing nitrogen with a purity of up to 99.5% at 4L/min
Variable outlet flow, pressure, and purity
Color-indicative LED lighting for easy status awareness
Manufactured and tested to the highest spec in the UK, CE/ FCC certified
Safer and more convenient than pressurized cylinders, dewars, or bulk storage
12 month on-site comprehensive warranty
Backed by [PEAK Protected] global on-premise servicing and technical
Gas
Gas Type: Nitrogen
Max Gas Flow: 10L/min
Max Output Pressure: 100psi/6.9bar
Max Purity: up to 99.5% at 4LPM & up to 97.5% at 10LPM
Site & Installation
Gas Outlets Fitting: 1 x ¼" BSPP & 1 x 6mm push fit
Power Consumption: 680W
Voltage: 120V/220-240V
Max Operating Temp: 35°C / 95°F
Suspended Liquids: None
Noise Level: 58
Dimensions & weight
Size (HxWxD) mm: 453 x 417 x 540 mm
Size (HxWxD) Inches: 17.8 x 16.4 x 21.3 inches
Generator Weight: 31.5kg / 69.3lbs
