Application Types LC-MS, CAD & ELSD, Sample Preparation

Part number: 3300671

Status Available i

Integrated compressor No

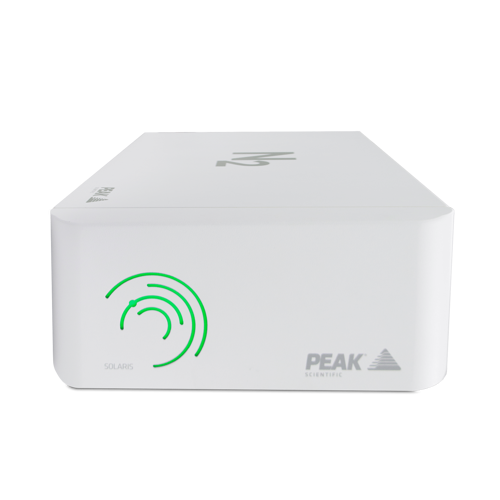

Solaris XE lab nitrogen generator

PEAK Scientific’s Solaris XE nitrogen generator has been engineered using membrane technology to meet the gas delivery requirements for labs using LC-MS/MS or multiple ELSDs.

Solaris XE can operate with varying flow rates (up to 35L/min of high purity nitrogen), purity (up to 99.5%) and outlet pressure can be adjusted down from 116psi, offering a flexible solution for a variety of applications. The Solaris XE has been engineered to provide nitrogen to laboratories that utilize an external source of compressed air, which meets a minimum quality grade of ISO 8573-1:2010 Class 1.4.1, and its compact, space-saving chassis allows it to be placed on a benchtop, mounted on a wall or beneath an instrument taking up minimal space in the lab.

Read more
Request a quote

Features

  • Nitrogen up to 35L/min, up to 116 psi and up to 99.5% purity
  • Variable outlet flow, pressure and purity
  • Compact, stackable* system maximizing the use of valuable laboratory floor or bench space
  • Colour indicative LED lighting for easy status awareness
  • Manufactured and tested to highest spec in UK, CE/FCC/CSA certified
  • Safer and more convenient than pressurized cylinders, dewars or bulk storage
  • 12 month on-site comprehensive warranty
  • Backed by [PEAK Protected] global on premise servicing and technical support

*units stacked on top of Solaris must not exceed 100kg/220.4lbs

Gas

Gas Type: Nitrogen

Min Gas Flow: 0L/min

Max Gas Flow: 35L/min

Max Output Pressure: 116psi/8bar

Max Purity: 99.50% *

Site & Installation

Gas Outlets Fitting: 1 x 1/4 " BSPP

Min Inlet Pressure: 80psi/5.5bar

Max Inlet Pressure: 145psi/10bar

Min Inlet Air Quality: ISO 8753-1:2010 Class 1.4.1

Power Consumption: Up to 6.9 Watts

Voltage: 100-230 ± 10% VAC

Frequency: 50 / 60 Hz

Current: 0.03 Amps

Heat output: 25 (BTU)

Max Operating Temp: 30°C / 86°F

Contaminants: Phthalate & BHT Free

Accreditations: CE, FCC, CSA

Dimensions & weight

Size (HxWxD) mm: 156 x 343 x 650 mm

Size (HxWxD) Inches: 6.1 x 13.5 x 25.6 inches

Generator Weight: 15kg / 33lbs

Nitrogen Gas Prices Cylinders vs Generators

Save money with a nitrogen gas generator

With Solaris XE nitrogen gas generator you can save 29% over 3 years.
