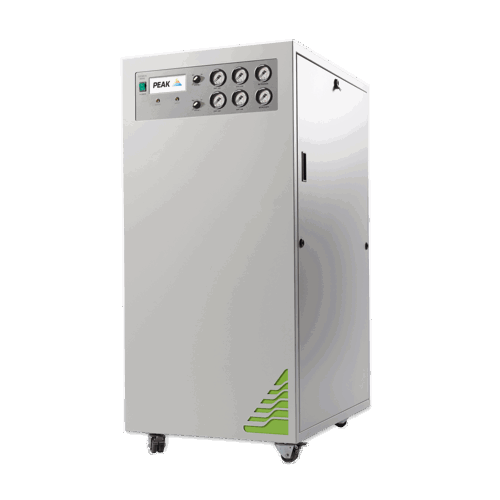

Genius 3030 Nitrogen and dry air gas generator
The Genius 3030 has been designed to supply curtain, source & exhaust gases for selected SCIEX LC-MS systems. This generator has two outlets for each of the three gases supplied, allowing two SCIEX LC-MS systems to be comfortably run using one Genius 3030.
View active replacementFeatures
- Curtain, source and exhaust gas all in one unit
- Two outlets for each gas supplies two Sciex LC-MS
- Higher flow rate 30 series generator designed for hungrier LC-MS applications
- Compressor based solution, no need for an external air supply
- Minimal set-up required
- Highly economical source of nitrogen gas with low lifetime running costs
- The latest generation of compressors located in an insulated chamber reducing noise and vibration
- Service indication to allow planning of preventative maintenance
- Gas is supplied on demand so generator works to your schedule
- Wheels make it easy to manoeuvre generator around the lab
- 12 month comprehensive on-site warranty
Gas
Gas Type: Nitrogen
Min Gas Flow: 0L/min
Max Gas Flow: 2 x 12L/min
Max Output Pressure: 80psi/5.5bar
Gas Type: Air
Max Gas Flow: 2 x 24L/min
Max Output Pressure: 80psi/5.5bar
Gas Type: Air
Min Gas Flow: 2 x 8L/min
Max Gas Flow: 2 x 8L/min
Max Output Pressure: 60psi/4.1bar
Site & Installation
Start Up Time: 30 mins
Voltage: 230 ± 10% VAC
Frequency: 50 / 60 Hz
Current: 12 Amps
Accreditations: CE, CSA, FCC

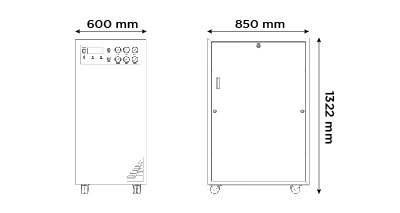

Dimensions & weight
Size (HxWxD) mm: 1322 x 600 x 850 mm
Size (HxWxD) Inches: 52 x 23.6 x 33.5 inches
Generator Weight: 196kg / 431.2lbs
