Application Types LC-MS

Part number: 10-8030

Status Discontinued i

Integrated compressor Yes

Genius NM-3G nitrogen generation system

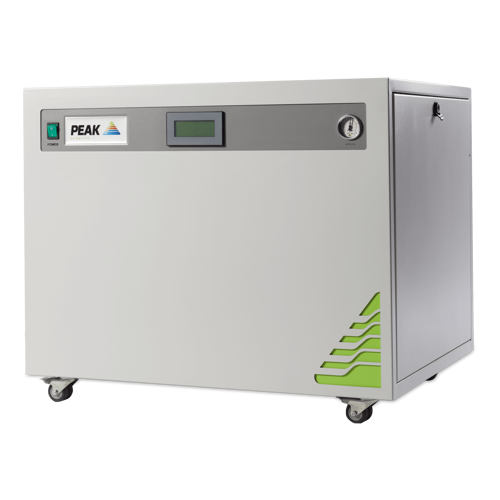

Name: Genius NM-3G nitrogen generation system
Brand: Peak Scientific
SKU: 10-8030

Engineered specifically for critical applications requiring maximum uptime, the NM-3G on-site nitrogen gas generation system is guaranteed to perform at all times. For such mission-critical applications, the NM-3G possesses a variety of extra precautionary features, including highly robust integrated compressors with additional load capacity, self-diagnostics and an alarm system to notify of any performance issue.

View active replacement

Features

Additional compressor capacity to ensure continuous operation in unlikely event of one compressor failure
Built to ensure uninterrupted supply of gas for clinical applications
Advanced alarms in the unlikely event of product issues
Minimal set-up required
Generator has the capacity to self-diagnose to inform when maintenance is required
Highly economical source of nitrogen gas with low lifetime running costs
Gas is supplied on demand so generator works to your schedule
Compressors are housed in an insulated compartment to reduce noise and vibration
12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 32

Max Output Pressure: 100psi/6.9bar

Site & Installation

Start Up Time: 30 mins

Power Consumption: Up to 2185 VA

Voltage: 230 ± 10% V

Frequency: 50 / 60 Hz

Current: 9.5 A

Heat output: 7451 BTU

Max Operating Temp: 35°C / 95°F

Particles: ‎<0.01 μm

Phthalates: none

Suspended Liquids: none

Accreditations: CE, CSA, FCC

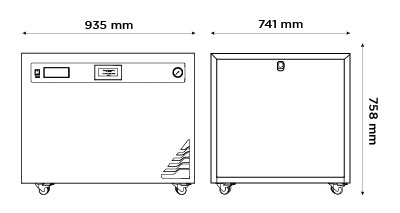

Dimensions & weight

Size (HxWxD) mm: 758 x 935 x 741 mm

Size (HxWxD) Inches: 29.8 x 36.8 x 29.2 inches

Generator Weight: 193kg / 424.6lbs

Downloads

Genius NM-3G - Data Sheet (Eng)

Genius NM-3G - User Manual (Eng)

Genius NM-3G - Installation Guide (Eng)
