Application Types LC-MS, CAD & ELSD, Sample Preparation

Part number: 3300252 (230VAC)
3300807 (120VAC)

Status Available i

Integrated compressor Yes

Genius XE 35 laboratory nitrogen generator

Inspired by the success of our best-selling Genius line of nitrogen gas generators for LC-MS, Genius XE Nitrogen is a cutting-edge evolution combining advanced technology with refined and robust engineering. With two models - XE 35 (up to 35 L/min) and XE 70 (up to 70 L/min) - Genius XE Nitrogen provides a premium standalone nitrogen solution for high performance LC-MS and other mission-critical laboratory applications where performance and reliability are paramount.

Smaller, more discrete, and easier to use than ever before thanks to PeakOS™, Genius XE is the ultimate solution for zero-stress nitrogen gas in the lab. Featuring Multi-Stage Purification™ and next-generation integrated compressors with Electronic Compressor Optimization™ (ECO) technology, Genius XE delivers factory certifiable purity up to 99.5% on-demand, 24/7 with a convenient fixed annual service interval.

Read more
Request a quote

Features

  • Variable flow up to 35 LPM
  • Variable pressure up to 116 psi
  • Multi-Stage Purification™ producing analytical grade nitrogen gas up to 99.5% purity
  • 2 year comprehensive manufacturer’s warranty*
  • Touch-screen full colour user interface for ease of operation
  • ECO (Electronic Compressor Optimisation™) technology for low energy consumption and compressor durability
  • Next-generation high performance premium compressors, engineered exclusively for Genius XE
  • Smaller & quieter than previous generation of Genius
  • On-board service scheduling and system diagnostics

* Year 2 of warranty subject to generator being serviced at end of year 1 by a PEAK-approved agent in accordance with fixed annual maintenance schedule.

** Factory certified purity with respect to O2 content. Actual purity varies in relation to flow (min. 95% at maximum flow output)

*** Noise level expressed as SPL (Sound Pressure Level) measured at 1m from source in a reverberant chamber

Gas

Gas Type: Nitrogen

Max Gas Flow: 35L/min

Hydrocarbon Content: <1ppm

Max Output Pressure: 116psi/8bar

Max Purity: 95-99.5% **

Site & Installation

Gas Outlets Fitting: 1 x 1/4" BSPP

Start Up Time: 30 mins

Power Consumption: 960 VA (120V) / 1265 VA (230V)

Voltage: 120 ± 10% VAC / 230 ± 10% VAC

Frequency: 50 / 60 Hz

Current: 12 Amps / 8 Amps

Heat output: 4118 (BTU)

Max Operating Temp: 35°C / 95°F

Particles: <0.01µm

Phthalates: Phthalate & BHT Free

Contaminants: none

Suspended Liquids: none

Noise Level: <56 dBA ***

Accreditations: CE, FCC, CSA, KC

Dimensions & weight

Genius XE Linedrawing

Size (HxWxD) mm: 650 x 570 x 710 mm

Size (HxWxD) Inches: 25.6 x 22.4 x 28 inches

Generator Weight: 92kg / 202.4lbs

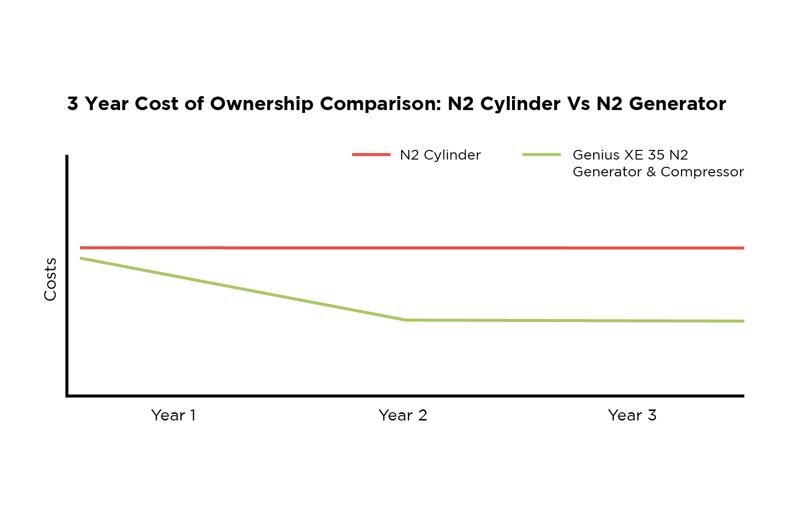

Nitrogen Gas Prices Cylinders vs Generators

Save money with a nitrogen gas generator

With the Genius XE 35 nitrogen gas generator you can save as much as 50% on your lab's nitrogen supply over 3 years, and even more if your lab has more than one LC-MS.

picture of keyboard

Discover your ROI

PEAK's ROI calculator is an easy-to-use online tool that will quickly help you see when you can expect to make a return on your investment on your gas generator. . By answering a few simple questions, we will calculate how many months it will take to make a return.

Discover your ROI
