Application Types LC-MS, Sample Preparation

Part number: 3303146

Status Available i

Integrated compressor Yes

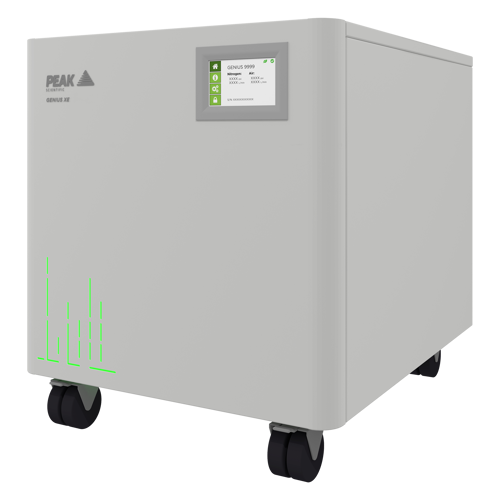

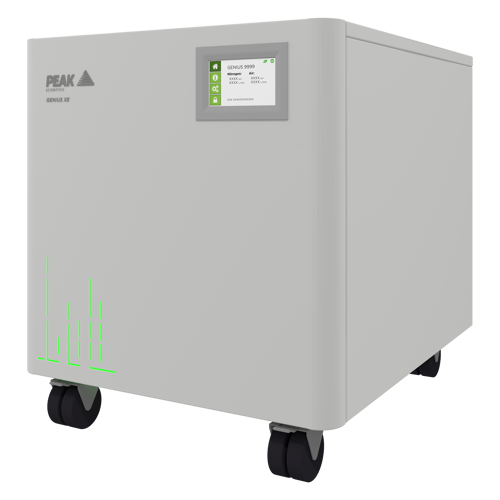

Genius XE QSD

Name: Genius XE QSD
Brand: Peak Scientific
SKU: 3303146

Combining advanced technology with refined and robust engineering, Genius XE QSD provides a premium standalone nitrogen solution custom designed to meet the requirements of PerkinElmer QSight Dual Source LC-MS.

Featuring dual outlets (1 x nitrogen, 1 x air), the generator is precision engineered to reduce size as well as noise and heat emissions. Genius XE QSD has been tested and validated by PerkinElmer for use with their QSight Dual Source LC-MS and comes with factory pre-set pressures and flows to meet the exact demands of the system.

Request a quote

Features

Factory pre-set pressures and flows to meet exact demands of PE QSight Dual Source Systems
Multi- Stage Drying Filtration to efficiently remove moisture and contaminants, providing a consistent quality of gas
Low impact on lab environment with low noise and heat emissions
Next-generation high performance premium compressors, engineered exclusively for Genius XE
Intuitive LED Service Indication
ECO (Electronic Compressor Optimisation™) technology for low energy consumption and compressor durability
Fixed annual maintenance schedule 1 year comprehensive manufacturer’s warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 16L/min

Max Output Pressure: 80psi/5.5bar

Gas Type: Air

Max Gas Flow: 67L/min

Max Output Pressure: 110psi/7.58bar

Site & Installation

Power Consumption: 1.64 kVA

Voltage: 220 - 240v ±10% 50/60 Hz

Current: 9 Amps

Max Operating Temp: 30°C / 86°F

Particles: <0.01µm

Phthalates: Phthalate & BHT Free

Noise Level: 57dB(A) @ 1m

Accreditations: CE, FCC, CSA

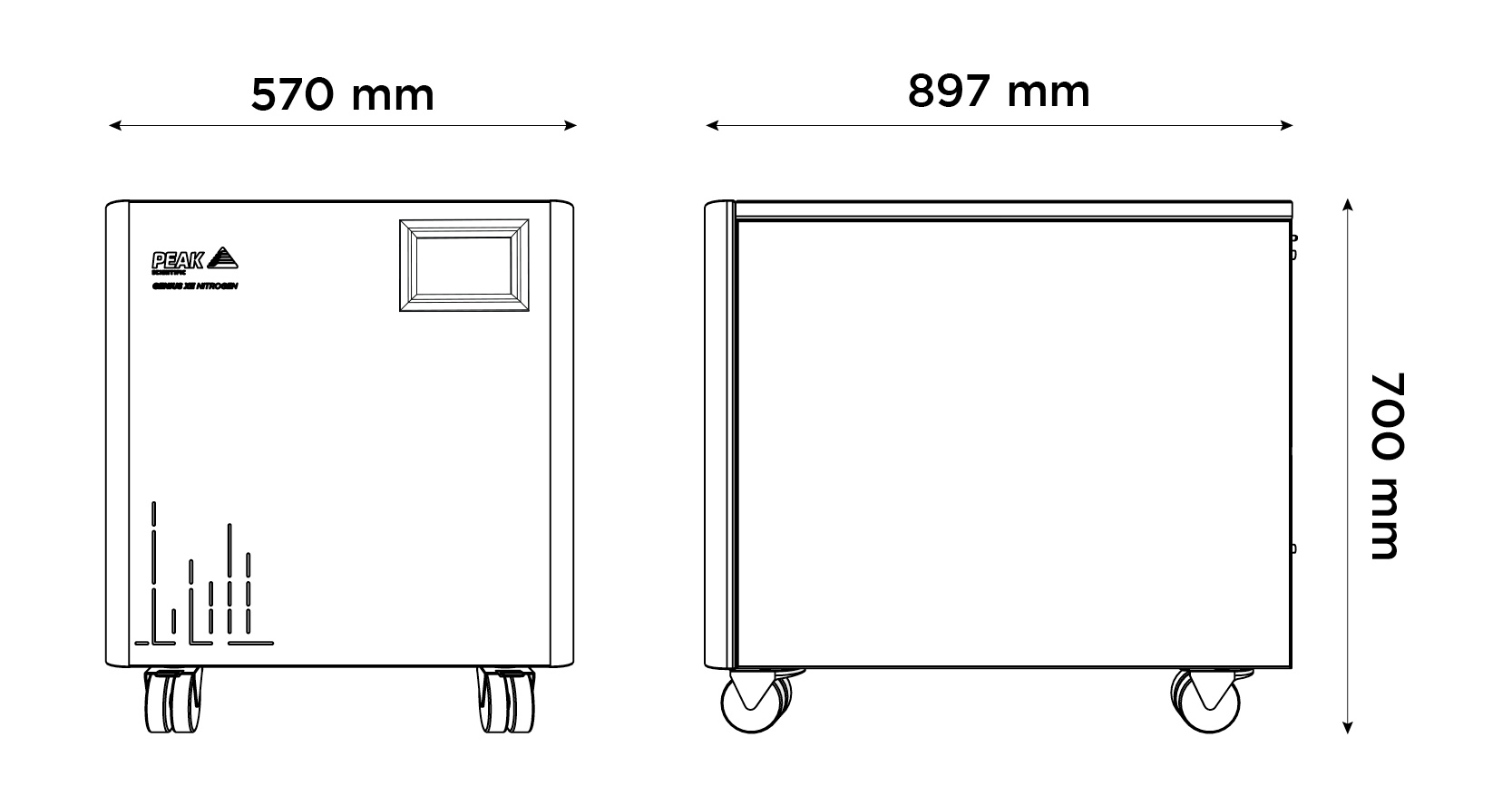

Dimensions & weight

Size (HxWxD) mm: 700 x 570 x 897 mm

Size (HxWxD) Inches: 27.6 x 22.4 x 35.3 inches

Generator Weight: 128kg / 281.6lbs

Downloads

Genius XE QSD - Data Sheet

Genius XE QSD - User Manual

Genius XE QSD - PerkinElmer One Sheet

Genius XE QSD - Installation Guide

Related Products

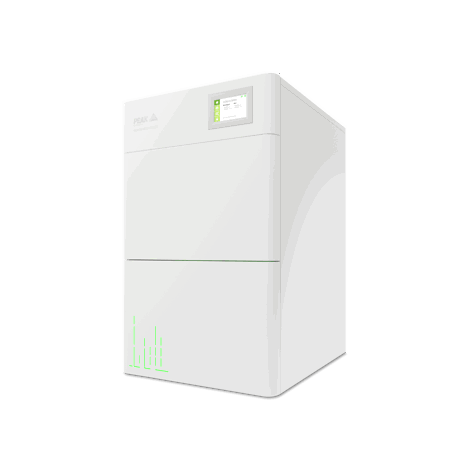

Genius XE 70 Laboratory gas generator
