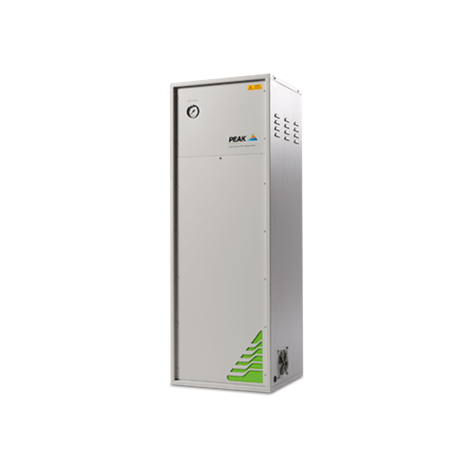

NG3000A ultra high purity nitrogen generator
The NG3000A delivers ultra high purity nitrogen at trace detection limits through Pressure Swing Adsorption technology at flows of up to 3 L/min.
Applications: GC & GC-MS, ICP-MS, CAD & ELSD, CD
Part number:
10-1160 (230v) - UK
10-1170 (230v) - EU
10-1180 (110v) - US
Status Obsoleted i
Integrated compressor Yes

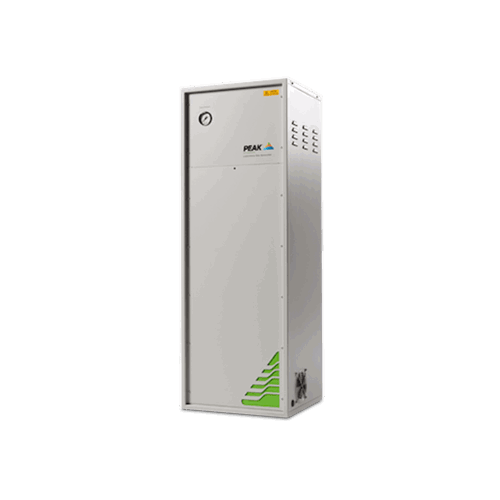

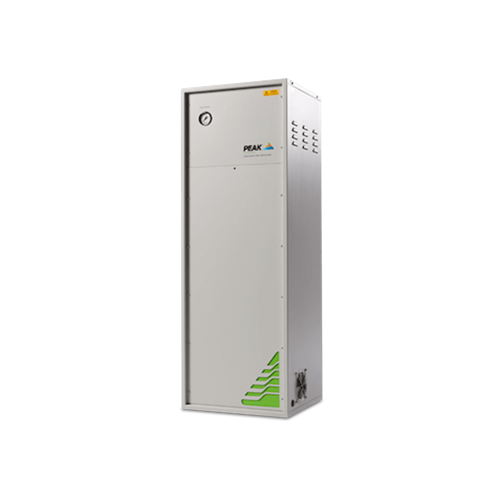

NG2000A Nitrogen Generator
The NG2000A delivers ultra high purity nitrogen at trace detection limits through Pressure Swing Adsorption technology at flows of 2 L/min for GC applications The NG2000A comes with an internal compressor for laboratories without an external source of gas.
View active replacementFeatures
- Suitable for applications such as GC, DSC, DMA
- Suitable for applications requiring ultra high purity
- Available with or without an external compressor
- Contains self-regenerating Carbon Molecular Sieve column
- Gas is supplied on demand so generator works to your schedule
- 12 month comprehensive on-site warranty
Gas
Gas Type: Nitrogen
Max Gas Flow: 2000cc/min
Max Output Pressure: 80psi/5.5bar
Max Purity: 99.9995%
Site & Installation
Min Inlet Pressure: 120 psi
Max Inlet Pressure: 130 psi
Min Air Inlet Flow: 2000 psi
Start Up Time: 8 Hours
Voltage: 110/230 V
Frequency: 50/60
Current: 0.5 Amps
Max Operating Temp: 25°C / 77°F
Particles: 0.01 μm
Noise Level: 0

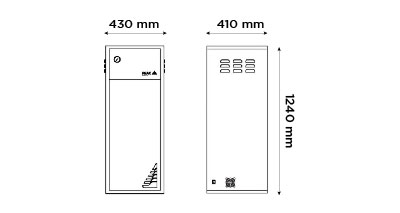

Dimensions & weight
Size (HxWxD) mm: 1222 x 432 x 406 mm
Size (HxWxD) Inches: 48.1 x 17 x 16 inches
Generator Weight: 57kg / 125.4lbs
