Application Types GC & GC-MS, Sample Preparation

Part number: 61-1000

Status Available i

Integrated compressor No

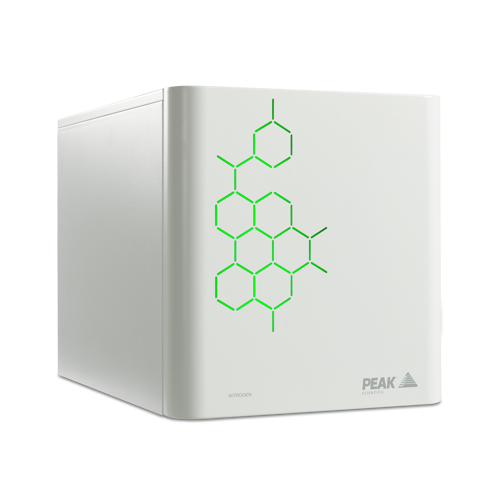

Precision Nitrogen 1000 - N2 generators

Precision Nitrogen 1000 has been developed to provide a constant and consistent source of nitrogen for detector make-up gas for GC applications, as well as headspace vial pressurization, purge and trap, tube conditioning for thermal desorption and sample preparation. These generators are capable of delivering high purity nitrogen, removing oxygen and moisture via Pressure Swing Adsorption and Carbon Molecular Sieve technology.



As with all Precision Series generators, nitrogen models benefit from a compact and modular, stackable design, minimizing the total footprint required for GC gas supply, and providing flexibility to add or remove modules as your laboratory requirements evolve over time.

Read more
Request a quote

Features

  • Suitable as make-up gas at standard detection limits
  • Nitrogen generated on demand, as and when it is required
  • Constant and consistent supply, avoid running out of gas during analysis
  • Avoid contaminants entering system as result of changing over empty cylinders
  • Dedicated precision compressor module available where house supply not available
  • Integrates seamlessly with other Precision units
  • Ultra-fast start-up time, quick to reach standard operating purity
  • Minimum maintenance with an annual filter change
  • Compact, space-saving modular design
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Min Gas Flow: 0cc/min

Max Gas Flow: 1000cc/min

Max Output Pressure: 80psi/5.5bar

Max Purity: 99.9995%

Site & Installation

Min Inlet Pressure: 100psi/6.9bar

Max Inlet Pressure: 120psi/8.3bar

Min Inlet Air Quality: ISO 8573-1:2010 Class 1.4.1 or Precision Air Compressor

Start Up Time: 90 mins

Voltage: 100-240 ± 10% V

Frequency: 50 / 60 Hz

Current: 0.2 - 0.4 A

Max Operating Temp: 35°C / 95°F

Accreditations: CSA, CE

Dimensions & weight

Precision Nitrogen 1000 Dimensions 01

Size (HxWxD) mm: 406 x 380 x 540 mm

Size (HxWxD) Inches: 16 x 15 x 21.3 inches

Generator Weight: 26kg / 57.2lbs

Service Requirements

Annual replacement of particulate filters
