Application Types CAD & ELSD, LC-MS

Part number: 65-0001

Status Available i

Integrated compressor No

Solaris 10 ELSD nitrogen generator

Name: Solaris 10 ELSD nitrogen generator
Brand: Peak Scientific
SKU: 65-0001

Peak Scientific’s Solaris 10 Nitrogen generator has been developed to provide an optimal gas generation solution for ELSD or Compact Mass Spectrometers, with the goal of reducing instrument downtime and improving workflow efficiencies. Engineered with a space-saving design, Solaris 10 can be placed on a benchtop and paired with an additional optional Solaris air compressor unit to provide air supply for labs without an in-house air supply or for those who wish to contain their gas supply in a single system.

Request a quote

Features

Variable outlet flow, pressure and purity
UHP nitrogen for ELSD at up to 10 L/min, 100 psi and up to 99.5% purity
Compact benchtop form factor, discrete aesthetic styling
Colour indicative LED lighting for easy status awareness
Optional Solaris Air Compressor stackable module
Engineered on reliable and proven existing technology
Manufactured and tested to highest spec in UK, CE/FCC certified
12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 10L/min

Max Output Pressure: 100psi/6.9bar

Max Purity: 99.5% *

Site & Installation

Gas Outlets Fitting: 1 x 1/4 " BSPP

Min Inlet Pressure: 80psi/5.5bar

Max Inlet Pressure: 130psi/9bar

Min Air Inlet Flow: 18-30

Min Inlet Air Quality: ISO8573 - 1:2010 Class 1.4.1

Power Consumption: Up to 23 VA

Voltage: 110 / 230 V

Frequency: 50 / 60 Hz

Current: 0.1 A

Heat output: 78 BTU

Max Operating Temp: 35°C / 95°F

Particles: <0.1μm

Contaminants: Phthalate & BHT Free

Suspended Liquids: none

Accreditations: CE, FCC

Dimensions & weight

Size (HxWxD) mm: 156 x 417 x 540 mm

Size (HxWxD) Inches: 6.1 x 16.4 x 21.3 inches

Generator Weight: 12kg / 26.4lbs

Downloads

Solaris 10 - Data Sheet (Eng)

Solaris 10 - User Manual (Eng)

Solaris 10 - Installation Guide (Eng)

Compressor Free - Brochure (Eng)

Related Products

Solaris XE lab nitrogen generator

PEAK Scientific’s Solaris XE nitrogen generator has been engineered using membrane technology to meet the gas delivery requirements for labs using LC-MS/MS or multiple ELSDs.

Applications: LC-MS, CAD & ELSD, Sample Preparation

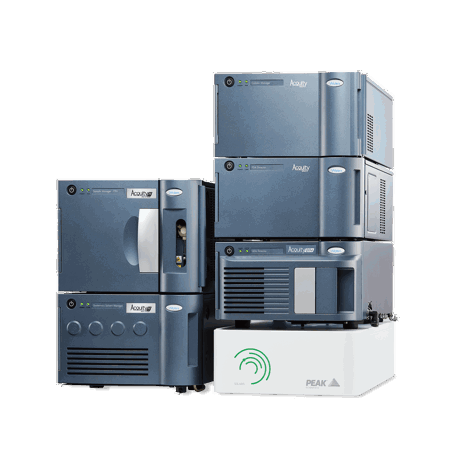

Solaris XE For Waters N2 Nitrogen Solution

Solaris XE Lab for Waters - N2 solution for ACQUITY™ QDa™

Solaris XE can operate with varying flow rates (up to 35L/min of high purity nitrogen), purity (up to 99.5%) and outlet pressure can be adjusted down from 116psi, offering a flexible solution for a variety of applications.

Applications: CAD & ELSD, Sample Preparation, LC-MS

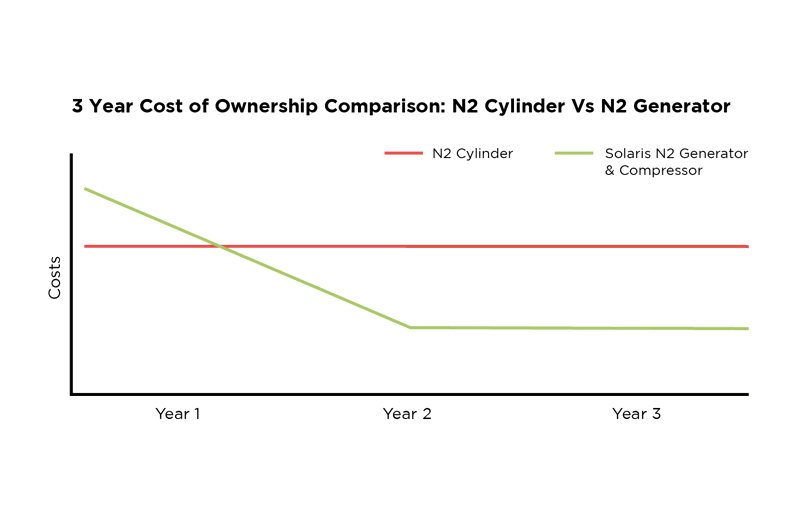

Nitrogen Gas Prices Cylinders vs Generators

Save money with a nitrogen gas generator

With Solaris 10 nitrogen gas generator you can save 29% over 3 years.

Nitrogen gas costs Solaris 10
