Application Types LC-MS

Part number: 10-6020 (230v)
10-6520 (110v)

Status Discontinued i

Integrated compressor Yes

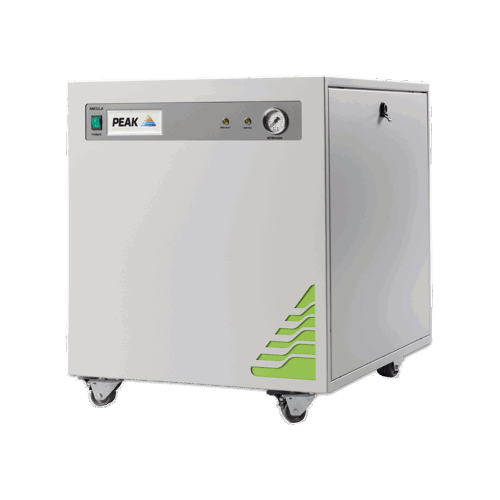

Genius NM32LA nitrogen generators

The culmination of over a decade's work perfecting on-site gas generation for LC-MS, the Genius NM32LA is the pinnacle of our Genius series. With thousands of units in the field, the NM32LA has become the proven and reliable nitrogen generator of choice in countless laboratories across the world.



The NM32LA delivers up to 32 liters per minute of nitrogen gas, suitable for most LC-MS instruments available on the market today.

Read more
View active replacement

Features

  • Compressor based solution, no need for an external air supply
  • Service indication to allow planning of preventative maintenance
  • High-specification latest generation compressors located in insulated chamber reducing noise and vibration
  • Minimal set-up required
  • Highly economical source of nitrogen gas with low lifetime running costs
  • Proven robust and reliable nitrogen gas generation technology
  • Safe and practical laboratory-grade nitrogen
  • 12 month comprehensive on-site warranty

Gas

Gas Type: Nitrogen

Max Gas Flow: 32L/min

Max Output Pressure: 100psi/6.9bar

Site & Installation

Gas Outlets Fitting: 1/4" BSP

Start Up Time: 30 mins

Power Consumption: 1680 VA

Voltage: 110 / 240 ± 10% VAC

Frequency: 50 / 60 Hz

Current: 11 / 7 A

Heat output: 5729 BTU

Max Operating Temp: 30°C / 86°F

Particles: <0.01μm

Phthalates: none

Contaminants: none

Suspended Liquids: none

Accreditations: CE, CSA

Dimensions & weight

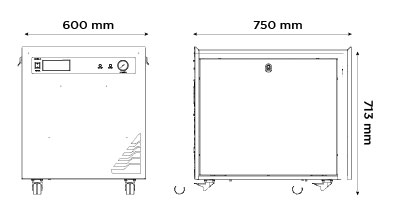

Genius NM32LA Dimensions

Size (HxWxD) mm: 713 x 600 x 750 mm

Size (HxWxD) Inches: 28.1 x 23.6 x 29.5 inches

Generator Weight: 103kg / 226.6lbs

Genius NM32LA Reviews

5Startreview

Charles Veltri - Midwestern University College of Pharmacy-Glendale

"The NM32LA is an incredible nitrogen generator. It is quiet, reliable, easy to set-up, and the service agreement with Peak Scientific makes the instrument a must have for mass spectrometer users."

Read more

Gold 24

Seal of Quality

The Genius NM32LA Nitrogen Generator from PEAK Scientific has won a prized Seal of Quality from Select Science in recognition of it receiving over 100 reviews from scientists globally, with an average rating of 4.7 stars out of 5.

Read more
